The EXTRAC BAS Bin Activators are silo or bin discharging devices that creates controlled vibration through the product column for continuous extraction.

Receive 1-3 days from order

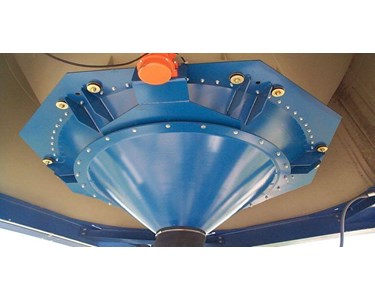

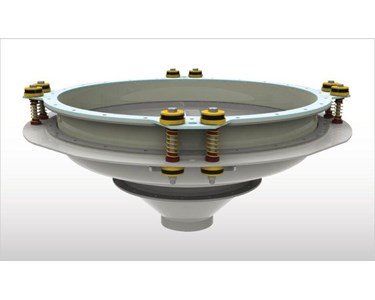

The BAS Bin Activator consists of a half convex, half conical shape. Set in vibration it facilitates material flow from hoppers or silos. It consists of a seamless carbon or stainless steel cone, manufactured on a sheet metal lathe, a seamless SINT engineered polymer seal with integrated upper and lower flange, suspensions for connection of the Bin Activator with the silo, as well as one or two OLI electric motovibrators.

The BAS Bin Activator suits certain applications, especially in the flour milling industry, to facilitate discharging of powdery or granular materials from silos or hoppers. The use of this equipment ensures optimum feeding of the material causing a “mass flow” condition inside the silo, thus avoiding bridging or rat holing phenomena.

Available in Stainless steel 304, Carbon steel or Carbon steel with food grade paint.
Diameters from 600 mm to 2100 mm.
Standard gasket made from wear-resistant SINT engineering polymer.
Optional gaskets available in Food grade FDA approved option and high temperature options.
Wide range of baffle plates to suit the application and product being discharged.
Seamless discharge cone & overall construction with 70% fewer welds than a traditional bin activator
ATEX certified versions available.
Negative Pressure build version available.
Suspensions available that are suitable for installation on Aluminium Silos.

To contact Filquip about EXTRAC BAS Bin Activators use Get a quote.

Available in Stainless steel 304, Carbon steel or Carbon steel with food grade paint.
Diameters from 600 mm to 2100 mm.
Standard gasket made from wear-resistant SINT engineering polymer.
Optional gaskets available in Food grade FDA approved option and high temperature options.
Wide range of baffle plates to suit the application and product being discharged.
Seamless discharge cone & overall construction with 70% fewer welds than a traditional bin activator
ATEX certified versions available.
Negative Pressure build version available.
Suspensions available that are suitable for installation on Aluminium Silos.

Read less...

To contact Filquip about EXTRAC BAS Bin Activators use Get a quote.
