MAP Continuous Single Shaft Mixers – WAH Model

Supplier: Filquip

The WAH Continuous Single Shaft Industrial Mixers are the ideal machine to obtain highest quality mixtures. Mixing with WAH is quick yet gentle with thousands of mixers supplied over the last three decades all over the world.

Receive 1-3 days from order

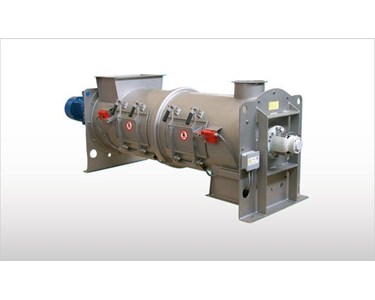

WAH Continuous Industrial Mixers consist of a cylindrical mixing drum with an inlet at one end, an outlet at the opposite end and a venting spout. With internal mixing shaft, two drum closing end plates with flanged end bearing assemblies complete with integrated air or gas-purged shaft seals, and a drive unit complete with power transmission the WAH mixer is built to industrial standards.

Ploughshares or inclined blade-type shovels rotate as mixing tools in a specific arrangement on the mixer shaft inside the drum vessel. The result is a specific turbulence through the mix that constantly brings all the product particles into the mixing process removing the formation of dead spots or slow-movement zones.

Model sizes with capacities from 2m³/hr to 1,000m³/hr.
Ability to add up to 20% liquid to the continuous mixing process.
End bearing assemblies available with various types of air or nitrogen-purged shaft seals or grease sealing.
Available in Carbon Steel, Anti-wear steel, Stainless Steel 304 and Stainless Steel 316 constructions.
Available in bead blasted, mirror polished or grit silked finishes.
Wide range of mixing tools fittable including ploughshare, toothed ploughshare, blade-type, toothed blade all possible with anti-wear coating on request.
Available with Replaceable liners, Ceramic liners, Teflon liners and Stainless steel mesh as optional additions.
Optional pneumatic sampling devices available to be fitted.

To contact Filquip about MAP Continuous Single Shaft Mixers – WAH Model use Get a quote.

Model sizes with capacities from 2m³/hr to 1,000m³/hr.
Ability to add up to 20% liquid to the continuous mixing process.
End bearing assemblies available with various types of air or nitrogen-purged shaft seals or grease sealing.
Available in Carbon Steel, Anti-wear steel, Stainless Steel 304 and Stainless Steel 316 constructions.
Available in bead blasted, mirror polished or grit silked finishes.
Wide range of mixing tools fittable including ploughshare, toothed ploughshare, blade-type, toothed blade all possible with anti-wear coating on request.
Available with Replaceable liners, Ceramic liners, Teflon liners and Stainless steel mesh as optional additions.
Optional pneumatic sampling devices available to be fitted.
