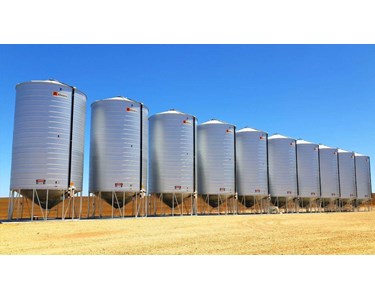

Grain Silo | 4950 Diameter
Grain Silo | 4950 Diameter
Supplier: Ahrens Rural
Grain Silo | 4950 Diameter
Grain Silo | 4950 Diameter
Description
Receive 1-3 days from order
Ahrens Grain Silos Standard Features
- Sealed and pressure tested in compliance with AS2628-2010
- The Ahrens Thermosiphon fumigation system with ground operated phosphine box dispensing gas quickly and effectively through the base and top of the silo simultaneously.
- UV stabilised one piece moulded oil bath pressure relief valve, delivering industry leading strength and longevity to safeguard your sealed silo.
- Fully welded (internal and external) 32° galvanised base construction
- Silo section ring beam to enable effective clean out
- ALUZINC steel silo sidewalls and roof construction
- 600mm diameter ground operated pressure sealing centrefill with stainless steel cabling hand winch
- Sight glasses to indicate grain level
- Manual discharge slide gate operated from the base ring
- 2 (Two) 1,000mm wide bay for ease of access with auger or belt conveyor
- Easily accessible base manhole
- 5mm tie down plate and 16mm blocks for under silos base ring – to enable sufficient clearance for drainage and site hygiene
- AnkaScrew connection to concrete (foundation supplied by client)
- 600mm discharge clearance
126T GRAIN SILO - Specifications
- Diameter (m): 4.95
- Base Cone Angle: 32°
- Overall Height (m): 10.6
- Approx. Tonnes: 126
- Cubic Metres: 158
- Auger Req. (ft): 70
- Outlet Clearance (mm): 600
103T GRAIN SILO
- Diameter (m):4.95
- Base Cone Angle: 32°
- Overall Height (m): 9.2
- Approx. Tonnes: 103
- Cubic Metres: 130
- Auger Req. (ft): 60
- Outlet Clearance (mm): 600
94T GRAIN SILO
- Diameter (m): 4.95
- Base Cone Angle: 32°
- Overall Height (m): 8.6
- Approx. Tonnes: 94
- Cubic Metres: 119
- Auger Req. (ft): 55
- Outlet Clearance (mm): 600
81T GRAIN SILO
- Diameter (m): 4.95
- Base Cone Angle: 32°
- Overall Height (m): 7.74
- Approx. Tonnes: 81
- Cubic Metres: 102
- Auger Req. (ft): 50
- Outlet Clearance (mm): 600
To contact Ahrens Rural about Grain Silo | 4950 Diameter use Get a quote.
