HEMS - Pin Pusher for Small Tracks: HEPP 30T & 50T

Supplier: Delahenty Machinery

Pin Pusher for Small Tracks: HEPP 30T & 50T

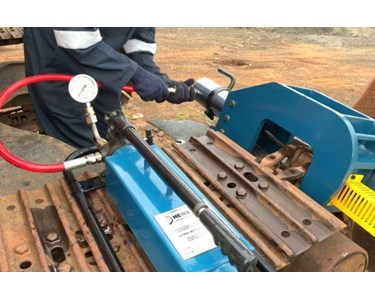

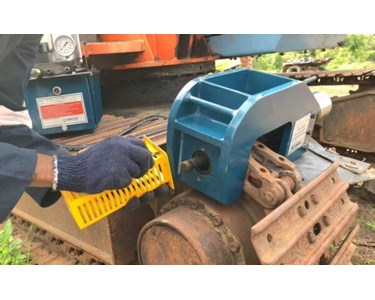

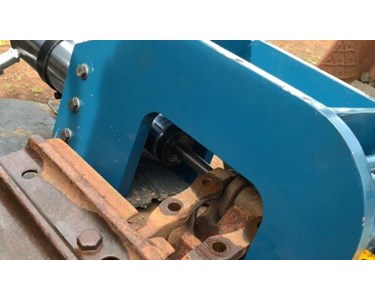

HEMS portable track presses or ‘Master Pin Pusher’ series HEPP, make it possible to disassemble and reassemble chain sections, driving wheels, pulleys, rollers, gears, bearings and shafts all in the field or workshop.

Video for HEMS Pin Pusher for Small Tracks: HEPP 30T & 50T

Safe, labour & cost efficient

Receive 4+ weeks from order

Overview

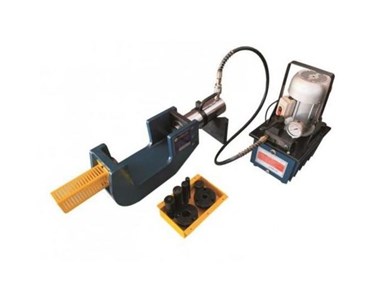

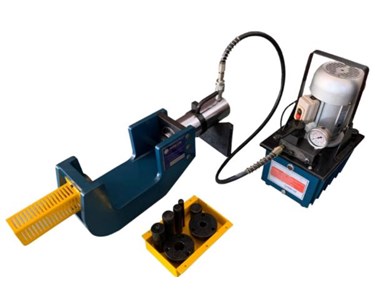

The HEPP 30T & 50T Pin Pushers are part of HEMS' Master Pin Pusher series, engineered to facilitate the disassembly and reassembly of chain sections, driving wheels, pulleys, rollers, gears, bearings, and shafts. These portable track presses are ideal for both field and workshop environments, offering a safe and effective solution for track maintenance.

Key Features

Compact and lightweight design for easy portability and one-man operation.
Includes tooling sets to accommodate pin diameters from 19.3mm to 36.2mm.
Reduces labour hours and costs by eliminating traditional, dangerous methods.
Suitable for a range of OEM applications including CAT, KOMATSU, VOLVO, JOHN DEERE, and HITACHI models.

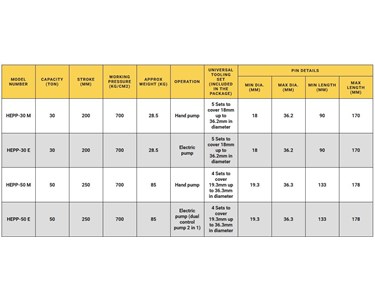

Technical Specifications

Below are the detailed specifications for the HEPP 30T & 50T models:

HEPP-30M Operation: Hand Pump

HEPP-30E Operation: Electric Pump

Capacity: 30 Ton
Stroke: 250 mm
Working Pressure: 700 kg/cm²
Approximate Weight: 28.5 kg
Universal Tooling Set: Includes 5 tooling sets covering pin diameters from 18 mm to 36.2 mm.
Pin Capacity:
- Minimum Diameter: 18 mm
- Maximum Diameter: 36.2 mm
- Minimum Length: 19.3 mm
- Maximum Length: 36.2 mm

HEPP-50M Operation: Hand Pump

HEPP-50E Operation: Electric Pump with Dual-Control 2-in-1 Pump

Capacity: 50 Ton
Stroke: 250 mm
Working Pressure: 700 kg/cm²
Approximate Weight: 30 kg
Universal Tooling Set: Includes 4 tooling sets covering pin diameters from 19.3 mm to 36.2 mm.
Pin Capacity:
- Minimum Diameter: 19.3 mm
- Maximum Diameter: 36.2 mm
- Minimum Length: 19.3 mm
- Maximum Length: 36.2 mm

?Applications

The HEPP 30T & 50T models are suitable for a variety of OEM applications, including:

CAT D5/955/E120, D5C/955/TR225/D4D
KOMATSU D31/PC138, D30/D50/PC100/PC120/PC80
VOLVO CE E210, EC145
JOHN DEERE 690, 450G/690/EX120-2/550G
HITACHI EX120, EX90/EX100/EX120

Overview

Key Features

Compact and lightweight design for easy portability and one-man operation.
Includes tooling sets to accommodate pin diameters from 19.3mm to 36.2mm.
Reduces labour hours and costs by eliminating traditional, dangerous methods.
Suitable for a range of OEM applications including CAT, KOMATSU, VOLVO, JOHN DEERE, and HITACHI models.

Technical Specifications

Below are the detailed specifications for the HEPP 30T & 50T models:

HEPP-30M Operation: Hand Pump

HEPP-30E Operation: Electric Pump

Capacity: 30 Ton
Stroke: 250 mm
Working Pressure: 700 kg/cm²
Approximate Weight: 28.5 kg
Universal Tooling Set: Includes 5 tooling sets covering pin diameters from 18 mm to 36.2 mm.
Pin Capacity:
- Minimum Diameter: 18 mm
- Maximum Diameter: 36.2 mm
- Minimum Length: 19.3 mm
- Maximum Length: 36.2 mm

HEPP-50M Operation: Hand Pump

HEPP-50E Operation: Electric Pump with Dual-Control 2-in-1 Pump

Capacity: 50 Ton
Stroke: 250 mm
Working Pressure: 700 kg/cm²
Approximate Weight: 30 kg
Universal Tooling Set: Includes 4 tooling sets covering pin diameters from 19.3 mm to 36.2 mm.
Pin Capacity:
- Minimum Diameter: 19.3 mm
- Maximum Diameter: 36.2 mm
- Minimum Length: 19.3 mm
- Maximum Length: 36.2 mm

?Applications

The HEPP 30T & 50T models are suitable for a variety of OEM applications, including:

CAT D5/955/E120, D5C/955/TR225/D4D
KOMATSU D31/PC138, D30/D50/PC100/PC120/PC80
VOLVO CE E210, EC145
JOHN DEERE 690, 450G/690/EX120-2/550G
HITACHI EX120, EX90/EX100/EX120
