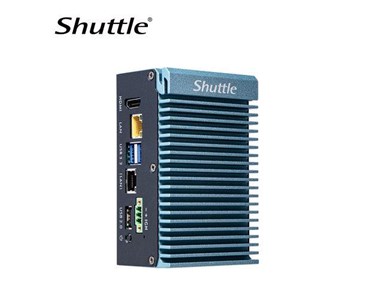

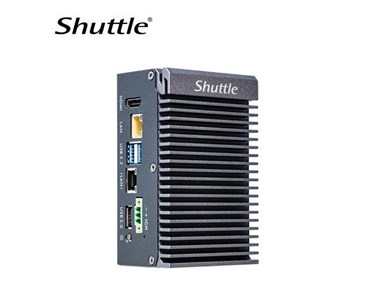

Shuttle - Fanless Industrial Edge PC Shuttle SPCEL02/03 Get latest price

Read more...

To contact Metromatics about Shuttle Fanless Industrial Edge PC Shuttle SPCEL02/03 use Get a quote.

Overview

The Shuttle SPCEL02/03 Fanless Industrial Edge PC is engineered to deliver powerful edge computing in a compact, rugged form. Ideal for Australia's challenging industrial and outdoor environments, this edge PC is perfect for automation, smart buildings, transport, and remote monitoring applications. With its robust Intel® processing, dual 2.5 GbE networking, and wide-temperature reliability, it ensures performance and flexibility in demanding conditions.

Key Features

• Ultra-compact, palm-sized design – Approximately 12 cm wide, ideal for tight spaces and DIN-rail installations.
• Processor options – Choose between Intel® Celeron J6412 (SPCEL02) or Intel® Atom x6413E (SPCEL03).
• Wide temperature operation – SPCEL03 rated from -20 °C to +60 °C, suitable for outdoor and industrial environments.
• Robust connectivity – Features dual 2.5 GbE LAN, RS-232 serial, HDMI 2.0b, and multiple USB ports.
• Flexible expansion – Includes two M.2 slots for SSD storage, Wi-Fi, LTE, or AI accelerator modules.
• Optional Power over Ethernet (PoE) – Simplifies installation with single-cable power and data.
• Industrial certifications – EN50155 and MIL-STD-810G for vibration, shock, and transport applications.
• Low maintenance – Fanless aluminium housing provides silent operation and excellent heat dissipation.
• OS flexibility – Compatible with Windows 11 64-bit and Linux for versatile software integration.

Technical Specifications

Below are the detailed specifications for the Shuttle SPCEL02/03:

FORM FACTOR	Rugged aluminium chassis
PROCESSOR	SPCEL02: Intel Celeron® J6412 2.60 GHz, SPCEL03: Intel Atom® x6413E 3.00 GHz
MEMORY	260 pin SO-DIMM, DDR4 3200MHz, Support up to 32 GB
VIDEO OUTPUT	HDMI 2.0b (4096×2160@60Hz) *1
ETHERNET	Intel I226-v (PCIe) LAN controller, Support Wake-On-LAN function
STORAGE INTERFACE	SSD M.2 M 2280/2242, With M.2 E-Key WLAN sku, only 2242 can support

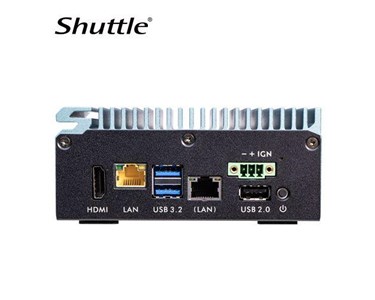

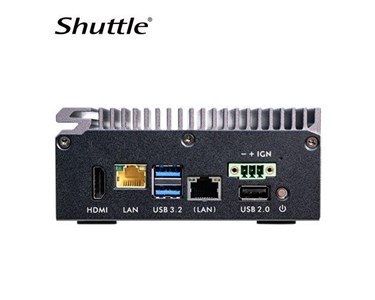

FRONT PANEL	2x USB 3.2 Gen2 (Type A) *2, USB 2.0 Type A *1, RJ-45 (Intel 2.5G Lan) *2
BACK PANEL	DIO *1, RS-232/422/485 (DB-9 *1)
DIMENSIONS	120 (L) x 75 (W) x 51 (H) mm
POWER	12V~24V DC in by 3-pin terminal block
ACCESSORIES	VESA Mount 100 x 100 mm, Ear Mount, Din Rail Mount 50 x 50 mm, Din Rail Clip
EXPANSION SLOT	1x M.2 2242/2280 M Key slot support SATA Gen 1, 1x SO-DOMM socket
OS SUPPORT	Windows 10/11 IoT Enterprise 64bit O.S, Linux
NET WEIGHT	0.7KG
OPERATING TEMPERATURE	0?~40? (SPCEL02), -20°C~60°C (SPCEL03), EN50155:2021 OT1 (-25 to 55 °C) (SPCEL03)
RELATIVE HUMIDITY	10% – 90% RH (non-condensing)
VIBRATION	EN61373, MIL-STD-810G
SHOCK	EN61373, MIL-STD-810G
EMC	CE, FCC, VCCI BSMI EN50121-3-2 standards
SAFETY	CB, cTUVus, CEC, BSMI
WLAN	1 x M.2 2230 E key (Option), Intel WiFi Module (802.11 a/b/g/n/ac) + BT 5.0, Realtek RTL8821CE (802.11 a/b/g/n/ac) + BT 5.0, External antenna (Dipole)

Typical Applications

The SPCEL02/03 is engineered for a variety of industrial and edge computing scenarios:

• Industrial Automation & IoT Gateways – Efficiently collect, process, and transmit sensor data in factories and utility sites.
• Smart Building & Energy Management – Drive automation, lighting control, and HVAC optimisation.
• Digital Signage & Kiosk Control – Power dynamic content in retail and public spaces.
• Transportation & Rail Systems – EN50155 compliance and wide temperature range make it ideal for rail and vehicle installations.
• Remote Monitoring & Data Logging – Perfect for unmanned stations and environmental monitoring.
• Edge AI Inference – Supports light workloads with optional M.2 accelerator for computer vision and object detection.
