Thermo Scientific Niton™ XL2 100G General ...

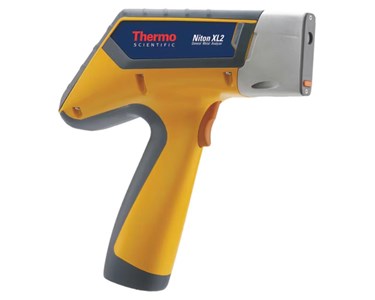

Thermo Scientific - Niton™ XL2 100G General Metal XRF Analyzer

Supplier: Thermo Fisher Scientific Australia Pty Ltd

Niton™ XL2 100G General Metal XRF Analyzer

A high-performance handheld X-ray fluorescence (XRF) analyser designed for rapid, non-destructive analysis of precious metals and their compositions.

Fast, accurate, and non-destructive analysis of precious metal content.

This handheld XRF analyser provides a fast, accurate, and non-destructive method to determine the purity and elemental composition of all precious metals. It is ideal for identifying gold plating, counterfeit gold, and verifying the exact elemental profile of jewellery and coins, making it highly suitable for gold dealers and the retail sector.

Key Features

Standard analysis of over 25 elements from sulfur (S) to uranium (U) depending on the application
User-friendly operation, suitable even for non-technical personnel
Non-destructive testing with near-instant results
Robust, ergonomic design for field and in-store use
No manual calibration required for different metals
Automated detection of gold plating using AuDIT™ technology
Precise quantification of trace elements and hazardous heavy elements
Enhanced safety with password protection

Specifications

Detector Type	High performance semiconductor
X-ray Tube	Silver (Ag) anode, 45 kV max, 80 µA max
Display	Fixed-angle touchscreen colour display
Data Storage	64 MB internal + 128 MB user memory (>10,000 readings with spectra)
Data Transfer	USB, Bluetooth, RS-232 serial interface
Protection	IP54 (splash and dust proof)
Operating Modes	Alloy modes: Metal alloys, electronics alloys, precious metals Bulk sample: Mining, soil samples Plastics: RoHS, toy and consumer plastics Painted products: TestAll painted product mode Custom modes: Available on request
Dimensions (L × W × H)	256 mm × 275 mm × 100 mm
Weight	1.53 kg
Maximum Power	2 W
Power Consumption	100 µA
Certification	CE, RoHS

Included Accessories

Lockable, shielded carrying case
Shielded belt holster
Two battery packs (each with 6 lithium-ion cells)
110/220 V AC charger/adaptor
PC connection cables (USB and RS-232)
Niton Data Transfer (NDT™) PC software
Security lanyard
Calibration standards and sample stands

Optional Accessories

Portable test stand
Bench-top stand
Mobile stand
Welding mask
Sample protection for soil analysis

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific Niton™ XL2 100G General Metal XRF Analyzer use Get a quote.

Key Features

Standard analysis of over 25 elements from sulfur (S) to uranium (U) depending on the application
User-friendly operation, suitable even for non-technical personnel
Non-destructive testing with near-instant results
Robust, ergonomic design for field and in-store use
No manual calibration required for different metals
Automated detection of gold plating using AuDIT™ technology
Precise quantification of trace elements and hazardous heavy elements
Enhanced safety with password protection

Specifications

Detector Type	High performance semiconductor
X-ray Tube	Silver (Ag) anode, 45 kV max, 80 µA max
Display	Fixed-angle touchscreen colour display
Data Storage	64 MB internal + 128 MB user memory (>10,000 readings with spectra)
Data Transfer	USB, Bluetooth, RS-232 serial interface
Protection	IP54 (splash and dust proof)
Operating Modes	Alloy modes: Metal alloys, electronics alloys, precious metals Bulk sample: Mining, soil samples Plastics: RoHS, toy and consumer plastics Painted products: TestAll painted product mode Custom modes: Available on request
Dimensions (L × W × H)	256 mm × 275 mm × 100 mm
Weight	1.53 kg
Maximum Power	2 W
Power Consumption	100 µA
Certification	CE, RoHS

Included Accessories

Lockable, shielded carrying case
Shielded belt holster
Two battery packs (each with 6 lithium-ion cells)
110/220 V AC charger/adaptor
PC connection cables (USB and RS-232)
Niton Data Transfer (NDT™) PC software
Security lanyard
Calibration standards and sample stands

Optional Accessories

Portable test stand
Bench-top stand
Mobile stand
Welding mask
Sample protection for soil analysis

Read less...

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific Niton™ XL2 100G General Metal XRF Analyzer use Get a quote.
