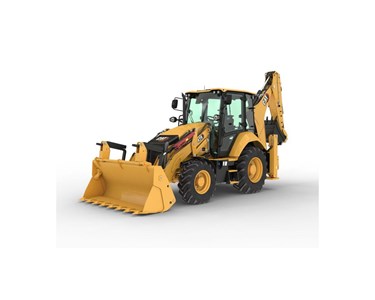

Cat 428 Side Shift Backhoe Loader

Cat - 428 Side Shift Backhoe Loader

Supplier: WesTrac

428 Side Shift Backhoe Loader

The Cat® 428 Side Shift Backhoe Loader features a proven engine, improved operator comfort, greater lifting performance, three Power Management Modes and Product Link™.

Proven Cat® Engine

Features

Proven Cat® Engine.
Improved Operator Comfort.
Greater Lifting Performance.
Powershift Transmission.
Excavator Style Boom.
Powerful and Efficient Hydraulics.
Three Power Management Modes.
Product Link™.

Engine

Specification	Value
Power - Net	87 hp/64 kW
Stroke	5 in/127 mm
Power Rating Conditions - No De-Rating Required Up To	7500 ft/2286 m
Ratings at 2,200 rpm - Gross Power ISO 14396	68 kW/93 hp

Engine - Standard Offering Tier 2 Equivalent

Specification	Value
Torque Rise (net) - SAE J1349 Net	384 N·m
Bore	105 mm
Torque Rise (net)	38% @ 1,400 rpm
Displacement	4.4 l
Net Power Rating at 2,200 rpm - SAE J1349	64 kW/87 hp
Net Power Rating at 2,200 rpm - ISO 9249	65 kW/88 hp
Ratings at 2,200 rpm - Gross Power SAE J1995	69 kW/94 hp

3054C 68.5 kW Mechanical Turbo.
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.

Engine - Optional Offering Tier 2 Equivalent

3054C 74.5 kW Mechanical Turbo.
Additional stated values without individual labels: 397 N·m; 70 kW/95 hp; 75 kW/102 hp; 74 kW/101 hp; 71 kW/96 hp; 31% @ 1,400 rpm.

Engine - Optional Offering Tier 3 Equivalent

C4.4 70 kW Mechanical Turbo Intercooled.
Additional stated values without individual labels: 65 kW/89 hp; 383 N·m; 71 kW/97 hp; 37% @ 1,400 rpm.

Engine - Optional Offering Tier 3 Equivalent - A

C4.4 74.5 kW Mechanical – Turbo Intercooled.
Additional stated values without individual labels: 76 kW/104 hp; 32% @ 1,400 rpm; 398 N·m; 75 kW/101 hp.

Transmission

Travel speeds of backhoe loader at full throttle, when equipped with 440/80-28 rear tires.

Transmission - Power Shuttle Transmission (Standard)	Value
Reverse - 3rd	21 km/h
Reverse - 4th	37 km/h
Reverse - 2nd	9.2 km/h
Reverse - 1st	5.6 km/h

Transmission - Powershift Transmission (Optional): individually unlabelled speed values are 5.9 km/h, 9.5 km/h, 27 km/h, 20 km/h, 12.4 km/h and 40 km/h.
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional): an individually unlabelled speed value of 12 km/h is stated.

Axle Ratings

Specification	Value
Front Axle (AWD) - Dynamic	9000 kg
Front Axle (AWD) - Static	23500 kg
Rear Axle - Dynamic	10000 kg
Rear Axle - Static	26500 kg

Weights

Specification	Value
Operating Weight - Nominal	8275 kg
Operating Weight - Maximum	11000 kg
Loader, IT with Quick Coupler	185 kg
Auto-Shift Transmission	105 kg
Ride Control	15 kg
Counterweights - Base	115 kg
Extendible Stick - Excludes Front Counterweight	208 kg
Counterweights - Maximum	460 kg
MP Bucket (1.03 m³/1.3 yd³) - with Fold-over Forks	860 kg
Cab - ROPS/FOPS	STD
Counterweights - Stackable, One	240 kg
MP Bucket (1.03 m³/1.3 yd³) - without Fold-over Forks	674 kg

Machine Configuration – standard LRC engine; standard stick hoe; standard cab with A/C; AWD standard shift transmission; 1.03 m³ MP loader bucket; 610 mm standard duty hoe bucket; front 340/80-18 and rear 440/80-28 tires; no counterweight; 80 kg operator; full fuel tank.

Hydraulic System

Specification	Value
System Pressure - Loader	250 bar
Pump Capacity @ 2,200 rpm	160 L/min
Type	Closed Center
Pump Type	Variable-Flow, Axial Piston

Steering

Specification	Value
AWD Cylinder, One (1) Double Acting - Bore	65 mm
AWD Cylinder, One (1) Double Acting - Stroke	106 mm
Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket	10.745 m
AWD Cylinder, One (1) Double Acting - Rod Diameter	40 mm
AWD Cylinder, One (1) Double Acting - Axle Oscillation	11 °
Turning Circle (inner wheel not braked) - Outside Front Wheels	8.205 m
Power Steering	Hydrostatic

Front Wheel.

Service Refill Capacities

Specification	Value
Diesel Exhaust Fluid	19 l
Engine Oil - With Filter	9 l
Cooling System - A/C	18 l
Hydraulic Tank	42 l
Rear Axle - Planetaries	1.7 l
Fuel Tank	160 l
Front Axle (AWD) - Planetaries	0.7 l
Rear Axle	16 l
Front Axle (AWD)	11 l

Additional capacity stated without an individual label: 95 l.
