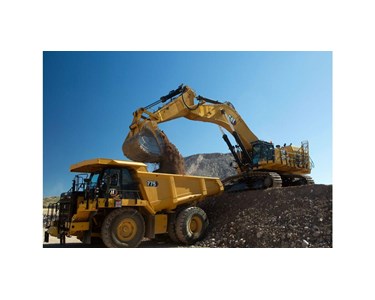

Cat - 6015 Hydraulic Mining Shovel Get latest price

Read more...

To contact WesTrac about Cat 6015 Hydraulic Mining Shovel use Get a quote.

Product overview

• High tool carrying capacity allows large buckets to move more material in fewer cycles.
• Increased durability and the most powerful engine in its class, with higher productivity and fuel efficiency than other shovels.
• Options include access and cold weather packages, multiple sticks and track pads, and a large range of buckets to match payload and machine efficiency to the operation.
• Specifications below apply to the highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.

General specifications

Engine

• Aspiration specification applies to the Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards.

Weights and track

• Operating weight includes: 700 mm (28 in) track pads, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants.

Drive and undercarriage

• Undercarriage specification: 38°/78% (SAE J1309).
• Heavy Duty (HD) with double-grouser track pads.
• Chain links connected by hardened pins and bushings.
• Postive Pin Retention (PPR2) sealed and greased track design.
• Hardened running surfaces of sprockets, idlers, rollers and track chain links.
• Fully hydraulic self-adjusting track tensioning system with accumulator.
• Automatic hydraulic retarder valve.
• Acoustic travel alarm, forward and reverse.

Service refill capacities

Electrical system

• Emergency stop switches: one in cab, three in engine module and one pull rope accessible from ground level.
• Four maintenance-free batteries and a lockable battery isolation switch.
• 14 LED high-brightness working lights and 5 LED service lights.
• 2 electric horns.
• Two lights for rear end, one beacon light on cabin roof and one light for machine deck/service.

Hydraulic system

• Full-flow high-pressure filters (200 µm) for main pumps.
• Full-flow filters (20 µm), return circuit.
• Pressure filters (16 µm), servo circuit.
• Full-flow filters (6 µm), cooling return circuit.
• Swing charge filter (15 µm).
• Pump case return screens (125 µm).

Swing system

• Two compact planetary transmissions with axial piston motors.
• Closed-loop with torque control.
• Hydraulic braking of swing motion when control is returned to neutral position, or by counteracting control for stronger braking.
• All raceways and the internal gearing of the swing ring are supplied by an automatic central lubrication system.

Centralised service and lubrication

• Centralised service area accessible from ground level for diesel fuel and grease.
• One pull rope emergency stop.
• Quick couplings for diesel fuel and grease.
• Central bank lubrication system.
• Grease is automatically applied to all attachment pivot points and slew bearing.

Operator's cab

• Pressurised cab with positive filtration.
• Heated cab mirror, sliding upper door window and glass-breaking safety hammer.
• Removable lower windscreen with in-cab storage.
• Joystick controls with alternate patterns including ISO/JIS, BHL, MHI, KOBE or SCM.
• Beverage holder and literature holder.
• AM/FM radio with MP3 auxiliary port and two stereo speakers.
• Storage shelf suitable for lunch or toolbox.
• Colour LCD display with service parameters, event and diagnostic annunciation, preventative maintenance, trip total and lifetime totals. Gauges for engine speed, engine oil pressure and hydraulic oil temperature.
• Head and arm rests.
• Independently adjustable seat consoles with integrated joysticks.
• Neutral lever lockout for all controls.
• Travel control pedals with removable hand levers.
• Two power outlets, 10 amp (total).
• Laminated front upper window and tempered glass other windows.
