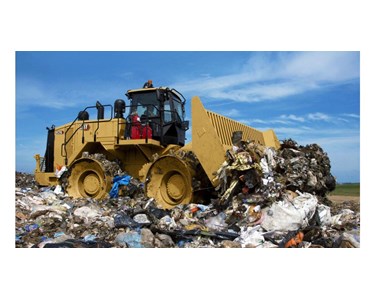

Cat 826 Landfill Compactor

Cat - 826 Landfill Compactor

Supplier: WesTrac

826 Landfill Compactor

The Cat® 826 Landfill Compactor features a C15 Cat® engine, powershift transmission and durability designed for maximum availability through multiple lifecycles.

Maximum availability

Features

Durability designed for maximum availability through multiple lifecycles.
Optimised performance and simplified serviceability for more efficient and safer operation.
Operator comfort and control, efficiency and productivity, productivity with technology, long-term value and durability, and wheel tips built to perform.
Introduced in 1978, with over 45 years of development.

Engine

Specification	Value
Gross Power - SAE J1995:2014	324 kW
Net Power - SAE J1349:2011	302 kW
Engine Power - ISO 14396:2002	318 kW
Engine Model	C15 Cat®
Emissions	U.S. EPA Tier 4 Final/ EU Stage V/Korea Stage V and Japan 2014 or Brazil MAR-1, emitting equivalent to U.S. EPA Tier 3/EU Stage IIIA
Rated Speed	1800
Torque Rise	33%
Bore	137.2 mm
Stroke	171.4 mm
Displacement	15.2 l
High Idle Speed	2300.0 r/min
Low Idle Speed	800.0 r/min
Maximum Altitude – Without Derating (Tier 4 Final/Stage V)	2834 m
Maximum Altitude - Without Derating (Tier 3/Stage IIIA)	2773 m

Advertised net power is available at the engine flywheel with a fan, air cleaner, clean emissions module and alternator fitted.

Operating Specifications

Specification	Value
Operating Weight (Tier 4 Final/Stage V)	40917 kg
Operating Weight (Tier 3/Stage IIIA equivalent)	40454 kg
Maximum Operating Weight (Tier 4 Final/Stage V)	41988 kg
Maximum Operating Weight (Tier 3/Stage IIIA equivalent)	41526 kg

Transmission

Specification	Value
Transmission Type	Planetary - Powershift - ECPC
Direct Drive - Forward 1	6.8 km/h
Direct Drive - Forward 2	12.1 km/h
Direct Drive - Reverse 1	7.8 km/h
Direct Drive - Reverse 2	13.8 km/h

Hydraulic System

Specification	Value
Pump Flow at 1800 rpm	117 L/min
Main Relief Pressure	26000 kPa
Maximum Supply Pressure	24100.0 kPa
Lift System	Double Acting Cylinder
Unlabelled specification	120.0 mm
Unlabelled specification	1070.0 mm

Service Refill Capacities

Specification	Value
Cooling System	116.0 l
Engine Crankcase	34.0 l
Unlabelled specification	66.0 l
Fuel Tank	782.0 l
Diesel Exhaust Fluid Tank (Tier 4 Final/Stage V)	32 l
Differential - Final Drives - Front	100.0 l
Differential - Final Drives - Rear	110.0 l
Hydraulic Tank Only	134.0 l

Requires ULSD with 15 ppm sulphur or less, or ULSD blended with up to 20% biodiesel FAME, or up to 100% renewable diesel, HVO and GTL fuels, subject to application guidelines.
Engines without aftertreatment devices can use up to 100% biodiesel; blends above 20% require consultation with a Cat dealer. Fluid guidance is provided in “Caterpillar Machine Fluids Recommendations” (SEBU6250).
Tailpipe greenhouse gas emissions from lower-carbon-intensity fuels are essentially the same as traditional fuels.
Requires Cat DEO-ULS™ or oils meeting Cat ECF-3, API CJ-4 and ACEA E9 specifications, and DEF meeting ISO 22241-1:2006.

Axles

Specification	Value
Front	Planetary - Fixed
Rear	Planetary - Oscillating
Oscillation Angle	±5°

Braking System

Specification	Value
Service Brakes	Multi Disc Wet (Enclosed) 2 WHL
Parking Brake	Drum and Shoe, Spring Applied, Hydraulic Released

Sound Performance - Tier 4 Final / Stage V

Specification	Value
Operator Sound Pressure Level (ISO 6396:2008)	73 dB(A)
Machine Sound Power Level (ISO 6395:2008)	113 dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*	72 dB(A)
Machine Sound Power Level (ISO 6395:2008)*	110 dB(A)

*Sound suppression equipped.
Machine sound power and operator sound pressure measurements were conducted at 70 percent of maximum engine cooling fan speed, according to ISO 6395:2008 and ISO 6396:2008 respectively.
Hearing protection may be needed with an improperly maintained cab, doors or windows open for extended periods, or operation in a noisy environment.

Hydraulic System - Steering

Specification	Value
Steering System - Circuit	Pilot operated, load sensing
Unlabelled specification	114.3 mm
Unlabelled specification	576.0 mm
Steering System - Pump	Piston - Variable Displacement
Maximum System Flow	170 L/min @ 1,800 rpm (44.9 gal/min @ 1,800 rpm)
Steering Pressure Limited	24000.0 kPa
Vehicle Articulation Angle	86.0 °

Dimensions (Approximate)

Specification	Value
Height to Top of Air Conditioning Condenser	4568 mm
Height - Cab Roof	4193 mm
Height - Top of Beacon	4765 mm
Height - Top of Exhaust Pipe	4439.0 mm
Height - Top of Hood	3312.0 mm
Ground Clearance - Bumper	960.0 mm
Centerline of Rear Axle to Edge of Counterweight - No Rear Radiator Guard	2860.0 mm
Centerline of Rear Axle to Edge of Counterweight - Including Rear Radiator Guard	3096.0 mm
Hitch to Centerline of Front Axle	1850.0 mm
Wheel Base	3700.0 mm
Length - With Blade on Ground - Straight Blade - Including Rear Radiator Guard	8715.0 mm
Ground Clearance	642.0 mm
Width - Over Wheels	3800.0 mm
Turning Radius - Inside of Wheels	2797.0 mm

Straight Blade

Specification	Value
Width – Moldboard Length	4311 mm
Width - Over End Bits	4502 mm
Height with Cutting Edge and Screen	1900 mm
Maximum Depth of Cut	461 mm
Maximum Lift above Ground	1277 mm
Capacity, Rated	12.3 m³
Overall Machine Length (includes rear radiator guard, measured to cutting edge)	8715 mm

Wheels

Specification	Value
Combination Tips (Weight Group)	9582 kg
Plus Tips - Weight (Group)	9980 kg
Paddle Tips - Weight (Group)	9317 kg
Diamond Tips Weight (Group)	10885 kg
Outside Diameter	1971 mm
Outside Diameter - Diamond	1983 mm
Drum Diameter	1610 mm
Drum Width	1200 mm
Feet Per Row	6
Feet Per Wheel	30
Replaceable	Weld On
Width Over Drums	3800 mm
Tip Height	179 mm
Tip Height - Diamond	179 mm
