Electric Rope Shovel | 7495 with Rope Crowd

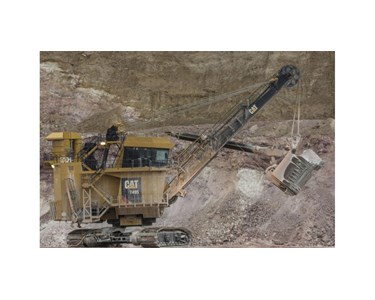

The Cat 7495 with Rope Crowd is an entirely electric rope shovel with AC IGBT electrics, regenerative braking and available operator-assist and machine self-protection technologies.

AC IGBT electrics

Features

AC IGBT electrics for greater uptime, lower operating costs and faster cycle times.
Operator’s cab described as the most comfortable and productivity-enhancing in the industry.
Available technologies provide operator assist, machine self-protection, proactive maintenance and real-time productivity and performance information.
Entirely electric operation is cleaner and more efficient than diesel-powered machines. Regenerative braking feeds electrical energy back to the grid.
Immense payload capability, low maintenance requirements and high reliability for low cost-per-ton loading in long-life mines.

Payload and Capacity

Specification	Value
Dipper Payload	120 t/109 t
Dipper Capacity	30.6-62.7 m3 (40-82 yd3)
Dipper Payload (Available Dipper Payloads Up To 109 Tonnes [120 tons] When Specified)	Dependent on application and material density

Weights

Specification	Value
Working Weight - With Dipper and Standard Links	1386178 kg
Ballast - Furnished By Customer	302614 kg
Note (1)	These weights will vary slightly depending upon dipper and optional equipment selection
Note (2)	All specifications are based on a 56 m3 (73 yd3) dipper and standard 200.7 cm (79 in) crawlers.

Main Structures

Specification	Value
Upper Works Overall Width - Including Standard Walkways	12.8 m
Planetary Propel	Dual-motor independent drive
Ground Bearing Pressure - Total Effective Bearing Area (200.7 cm) Treads	36 m2 (380 kPa); 386 ft2 (55 psi)
Crawler Dimensions - Overall Width 200.7 cm (79 in) Treads, Standard	11 m
Crawler Dimensions - Overall Width 259.1 cm (102 in) Treads	11.6 m
Ground Bearing Pressure - Note	Ground bearing pressure is dependent upon many factors
Ground Bearing Pressure - Total Effective Bearing Area (259.1 cm) Treads	47 m2 (297 kPa); 501 ft2 (43 psi)

Swing: Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack.
Hoist: A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.

Lube System

Specification	Value
Type	Automatic, single-line system for open gear lubricant and grease
Components (1)	Six pumps (four for open gear lubricant and two for grease) located in an insulated, heated, double-walled lube room
Components (2)	External FastFil from lower level

Electrical

Specification	Value
Power Requirements - Voltage	3 phase, 50/60 Hz, 7,200V
Power Requirements - 60 Hz	7,200V, 13,800V
Power Requirements - 50 Hz	6,000V, 6,600V, 7,200V, 11,000V
System Voltage - Nominal	50/60 Hz, 7,200V
Drive	IGBT Acutrol drive system
Power Requirements - Peak power	3737 kW
Power Requirements - Average Power Demand	934-1308 kW
Power Requirements - Note	Other voltage options available to suit customer requirements

Front End

Specification	Value
Rope Data - Hoist - No.	2
Rope Data - Dipper Trip - No.	1
Rope Data - Crowd - Diameter	64 mm
Rope Data - Hoist - Diameter	70 mm
Rope Data - Boom Suspension - Diameter	83 mm
Rope Data - Dipper Trip - Diameter	19 mm
Rope Data - Boom Suspension - No.	4

High impact ropes available as an option.
One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilise dipper handle.
Rope Crowd machinery is located at the front centre of the revolving frame, consisting of motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes move the dipper handle fore and aft.
Optional HydraCrowd hydraulic power skid, located at the front centre of the revolving frame deck, powers a large hydraulic cylinder to move the dipper handle fore and aft.

Dimensions - Working Ranges

Specification	Value
Dipper Capacities	109 t
Maximum Dumping Height	8.8 m

Dimensions (Approximate) - Optimal Working Ranges*

Specification	Value
Radius of Level Floor	17.1 m
Revolving Frame Tail Swing Radius	9.3 m
Cutting Height - Maximum	16.3 m
Cutting Radius - Maximum	24.4 m
Dumping Height - With Clearance to Open Dipper Door	Optimal working ranges based on loading a Cat 797F truck.

*All specifications are based on a 56 m3 (73 yd3) dipper and standard 200.7 cm (79 in) crawlers.

Features

AC IGBT electrics for greater uptime, lower operating costs and faster cycle times.
Operator’s cab described as the most comfortable and productivity-enhancing in the industry.
Available technologies provide operator assist, machine self-protection, proactive maintenance and real-time productivity and performance information.
Entirely electric operation is cleaner and more efficient than diesel-powered machines. Regenerative braking feeds electrical energy back to the grid.
Immense payload capability, low maintenance requirements and high reliability for low cost-per-ton loading in long-life mines.

Payload and Capacity

Specification	Value
Dipper Payload	120 t/109 t
Dipper Capacity	30.6-62.7 m3 (40-82 yd3)
Dipper Payload (Available Dipper Payloads Up To 109 Tonnes [120 tons] When Specified)	Dependent on application and material density

Weights

Specification	Value
Working Weight - With Dipper and Standard Links	1386178 kg
Ballast - Furnished By Customer	302614 kg
Note (1)	These weights will vary slightly depending upon dipper and optional equipment selection
Note (2)	All specifications are based on a 56 m3 (73 yd3) dipper and standard 200.7 cm (79 in) crawlers.

Main Structures

Specification	Value
Upper Works Overall Width - Including Standard Walkways	12.8 m
Planetary Propel	Dual-motor independent drive
Ground Bearing Pressure - Total Effective Bearing Area (200.7 cm) Treads	36 m2 (380 kPa); 386 ft2 (55 psi)
Crawler Dimensions - Overall Width 200.7 cm (79 in) Treads, Standard	11 m
Crawler Dimensions - Overall Width 259.1 cm (102 in) Treads	11.6 m
Ground Bearing Pressure - Note	Ground bearing pressure is dependent upon many factors
Ground Bearing Pressure - Total Effective Bearing Area (259.1 cm) Treads	47 m2 (297 kPa); 501 ft2 (43 psi)

Swing: Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack.
Hoist: A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.

Lube System

Specification	Value
Type	Automatic, single-line system for open gear lubricant and grease
Components (1)	Six pumps (four for open gear lubricant and two for grease) located in an insulated, heated, double-walled lube room
Components (2)	External FastFil from lower level

Electrical

Specification	Value
Power Requirements - Voltage	3 phase, 50/60 Hz, 7,200V
Power Requirements - 60 Hz	7,200V, 13,800V
Power Requirements - 50 Hz	6,000V, 6,600V, 7,200V, 11,000V
System Voltage - Nominal	50/60 Hz, 7,200V
Drive	IGBT Acutrol drive system
Power Requirements - Peak power	3737 kW
Power Requirements - Average Power Demand	934-1308 kW
Power Requirements - Note	Other voltage options available to suit customer requirements

Front End

Specification	Value
Rope Data - Hoist - No.	2
Rope Data - Dipper Trip - No.	1
Rope Data - Crowd - Diameter	64 mm
Rope Data - Hoist - Diameter	70 mm
Rope Data - Boom Suspension - Diameter	83 mm
Rope Data - Dipper Trip - Diameter	19 mm
Rope Data - Boom Suspension - No.	4

High impact ropes available as an option.
One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilise dipper handle.
Rope Crowd machinery is located at the front centre of the revolving frame, consisting of motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes move the dipper handle fore and aft.
Optional HydraCrowd hydraulic power skid, located at the front centre of the revolving frame deck, powers a large hydraulic cylinder to move the dipper handle fore and aft.

Dimensions - Working Ranges

Specification	Value
Dipper Capacities	109 t
Maximum Dumping Height	8.8 m

Dimensions (Approximate) - Optimal Working Ranges*

Specification	Value
Radius of Level Floor	17.1 m
Revolving Frame Tail Swing Radius	9.3 m
Cutting Height - Maximum	16.3 m
Cutting Radius - Maximum	24.4 m
Dumping Height - With Clearance to Open Dipper Door	Optimal working ranges based on loading a Cat 797F truck.
