CyberVisuell 23.8” FHD Multiple Input ...

CyberVisuell - 23.8” FHD Multiple Input Industrial Monitor CM-P238A-CT Price Guide: $1,889

Supplier: ESIS

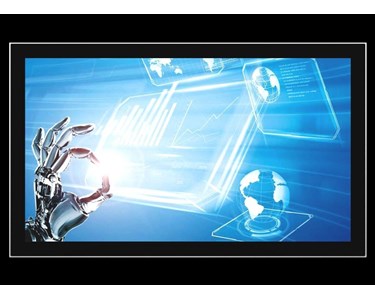

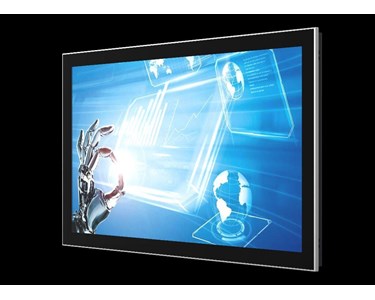

23.8” FHD Multiple Input Industrial Monitor CM-P238A-CT

1/5

Industrial LED Monitor, P-Cap.Touch, 23.8'' 19201080 Regular LCD 1 DVI + 1* VGA + 1* HDMI + 1* DP DC 12V with 40W adapter By Default Panel mounting or VESA/VGA+USB cable, IP65 Front

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Widescreen 23.8” TFT LCD, LED Backlit, Full HD 1920*1080;
Aluminum-magnesium alloy, Anodized treatment, modular designed;
Multi-points (Max. up to 10 points) Pcap. touchscreen, EETI controller;
Default USB touch interface, optional with RS232 touch interface;
DC 12V power input, optional with wide voltage DC 9~36V;
Multiple signal inputs: 1 DVI, 1 VGA, 1 HDMI, 1 DP;
Panel mount, VESA 75/100 mount, Front surface IP65 rate protection.

Specifications:

Basic
Front panel	Magnesium-Aluminum alloy, anodized treatment
Real panel	SGCC plate sheet, sand-blasting
Control button	OSD button on rear panel
Signal input	1* VGA, 1* DVI, 1* HDMI, 1* DP
Mount method	Panel mount, support VESA 75/100 mount
Overall dimension	578.4 * 347.9 * 51 (mm)
Cut-out dimension	568 * 338 (mm)
Net weight	7.2 KG
IP rate	Front surface IP65
LCD Display
Size/Type	23.8” TFT LCD Display
Resolution	1920 * 1080 (Full HD)
Brightness	250 nits
Contrast ratio	1000:1
Backlit & Lifetime	LED backlit & 30 000 hours
Display area	527.04 * 296.46
View angle	85/89/89/89
Touchscreen
Type	Projective capacitive touchscreen
Touch points	Multi points touch, max. up to 10 points
Durability	>100 000 000times
Surface hardness	Mohs 6H
Special treatment	Anti-fingerprint (AF)
Touch controller	EETI
Power & Environmental
Operating temp.	0 ~ + 50 ?
Storage temp.	-20 ~ + 70 ?
Relative Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional wide voltage DC 9~36V)
Power consumption	About 30W
EMC	CE/FCC Class A

Features:

Widescreen 23.8” TFT LCD, LED Backlit, Full HD 1920*1080;
Aluminum-magnesium alloy, Anodized treatment, modular designed;
Multi-points (Max. up to 10 points) Pcap. touchscreen, EETI controller;
Default USB touch interface, optional with RS232 touch interface;
DC 12V power input, optional with wide voltage DC 9~36V;
Multiple signal inputs: 1 DVI, 1 VGA, 1 HDMI, 1 DP;
Panel mount, VESA 75/100 mount, Front surface IP65 rate protection.

Specifications:

Basic
Front panel	Magnesium-Aluminum alloy, anodized treatment
Real panel	SGCC plate sheet, sand-blasting
Control button	OSD button on rear panel
Signal input	1* VGA, 1* DVI, 1* HDMI, 1* DP
Mount method	Panel mount, support VESA 75/100 mount
Overall dimension	578.4 * 347.9 * 51 (mm)
Cut-out dimension	568 * 338 (mm)
Net weight	7.2 KG
IP rate	Front surface IP65
LCD Display
Size/Type	23.8” TFT LCD Display
Resolution	1920 * 1080 (Full HD)
Brightness	250 nits
Contrast ratio	1000:1
Backlit & Lifetime	LED backlit & 30 000 hours
Display area	527.04 * 296.46
View angle	85/89/89/89
Touchscreen
Type	Projective capacitive touchscreen
Touch points	Multi points touch, max. up to 10 points
Durability	>100 000 000times
Surface hardness	Mohs 6H
Special treatment	Anti-fingerprint (AF)
Touch controller	EETI
Power & Environmental
Operating temp.	0 ~ + 50 ?
Storage temp.	-20 ~ + 70 ?
Relative Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional wide voltage DC 9~36V)
Power consumption	About 30W
EMC	CE/FCC Class A

Read less...

To contact ESIS about CyberVisuell 23.8” FHD Multiple Input Industrial Monitor CM-P238A-CT use Get a quote.

CM-P238A-CT _en v1.0 Datasheet(0.46MB)
