Grain Dryer Moisture Sensor, Hot Processes ...

Grain Dryer Moisture Sensor, Hot Processes to 120°C – Hydro-Mix HT

Supplier: Allegiant Milling & Processing Solutions

1/5

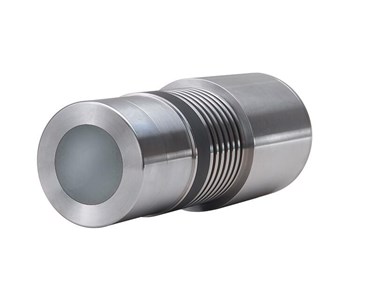

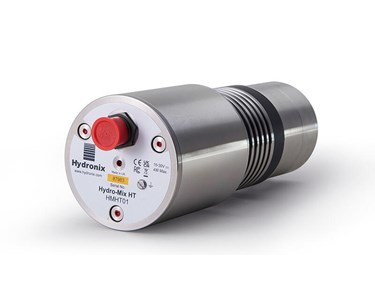

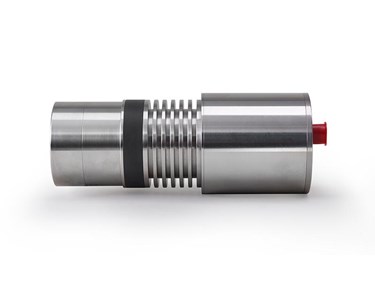

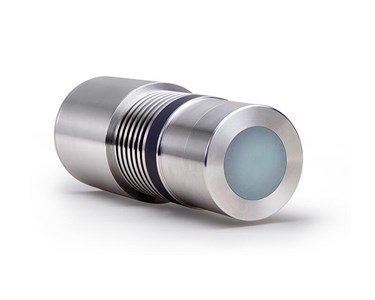

A flush-mounted moisture sensor built for hot material – fitted before or after grain and feed dryers, in ducting, screw conveyors or mixers – handling process temperatures up to 120°C. Supplied and supported in Australia by Allegiant.

Rated to 120°C for dryer outlets

Brand: Hydronix

Where it's used

Materials: grain, rice, animal feed, biomass, organic and agricultural materials
Dryers: flush-mounted before or after the dryer, including the hot dryer outlet
Ducting: in a larger duct or chute with consistent material flow (vertical and angled ducting systems available)
Screw conveyors: on the upstroke of the blade

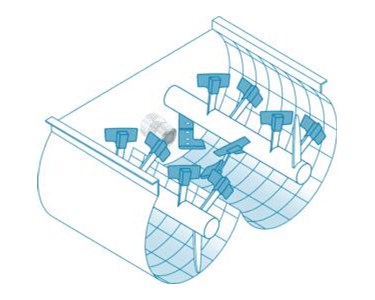

Mixers: end wall of single/twin shaft mixers; ribbon mixers and mixer outlets
Processes: conditioning (steam), drying, milling/grinding, mixing, pelletising/extrusion, packaging, storage

What it measures

Moisture content of hot material passing the sensor face, plus material temperature.

Key features

Rated for process temperatures up to 120°C
Flush mount – nothing protrudes into the flow
Selectable measurement modes
Adjustable signal filtering via Hydro-Com
Internal temperature compensation
Configure and calibrate remotely via Hydro-Com, Hydro-View or Hydro-Hub

Specifications

Specification	Value
Process temperature	Up to 120°C
Supply voltage	15–30 V DC (several sensors can share one supply)
Measurement rate	25 readings per second
Outputs	2 × analogue, RS485 with Modbus, configurable digital inputs/outputs
Accuracy (once calibrated, as published by Hydronix)	0.2% for aggregates, 0.1% in a mixer, 0.5% for other materials
Maximum cable run	100 m (screened 6-pair, 22 AWG / 0.35 mm² cable recommended, e.g. Belden 8306 or Alpha 6373)

Why buy from Allegiant

Allegiant supplies, installs and supports Hydronix moisture measurement across Australia and the Pacific, alongside complete grain processing and sorting systems. Tell us your material, process and installation point and we'll recommend the right sensor and provide a quote.

Where it's used

Materials: grain, rice, animal feed, biomass, organic and agricultural materials
Dryers: flush-mounted before or after the dryer, including the hot dryer outlet
Ducting: in a larger duct or chute with consistent material flow (vertical and angled ducting systems available)
Screw conveyors: on the upstroke of the blade
Mixers: end wall of single/twin shaft mixers; ribbon mixers and mixer outlets
Processes: conditioning (steam), drying, milling/grinding, mixing, pelletising/extrusion, packaging, storage

What it measures

Moisture content of hot material passing the sensor face, plus material temperature.

Key features

Rated for process temperatures up to 120°C
Flush mount – nothing protrudes into the flow
Selectable measurement modes
Adjustable signal filtering via Hydro-Com
Internal temperature compensation
Configure and calibrate remotely via Hydro-Com, Hydro-View or Hydro-Hub

Specifications

Specification	Value
Process temperature	Up to 120°C
Supply voltage	15–30 V DC (several sensors can share one supply)
Measurement rate	25 readings per second
Outputs	2 × analogue, RS485 with Modbus, configurable digital inputs/outputs
Accuracy (once calibrated, as published by Hydronix)	0.2% for aggregates, 0.1% in a mixer, 0.5% for other materials
Maximum cable run	100 m (screened 6-pair, 22 AWG / 0.35 mm² cable recommended, e.g. Belden 8306 or Alpha 6373)

Why buy from Allegiant
