Meyer - Tea, Herb, Dried & Frozen Fruit/Veg Belt Colour Sorter – KR Series

Supplier: Allegiant Milling & Processing Solutions

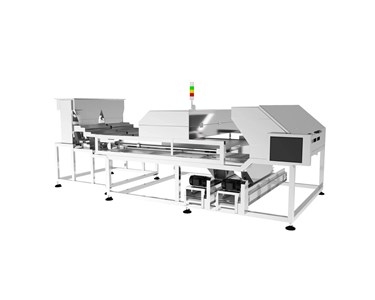

Tea, Herb, Dried & Frozen Fruit/Veg Belt Colour Sorter – KR Series

1/2

Belt colour sorter for tea, herbs, dried fruit and vegetables, and frozen products, removing hair, feathers, insects, paper, glass, plastic and sand plus broken pieces. Runs in cold storage. Supplied & supported in Australia by Allegiant.

Belt sorter for tea, herbs & dried fruit

What it sorts

Tea & herbs

Tea
Herbs

Fruit & vegetables

Dried fruit
Dried vegetables
Frozen products

What it removes

Foreign material: hair, feathers, insects, paper, glass, plastics and sand
Product defects such as breakage and irregular pieces

Key features

Built for lightweight product – a slow-running belt and air ejection help keep accepts and rejects from mixing and reduce product damage.
Cold-store capable – designed to operate in cold-storage facilities and at sub-zero temperatures, so frozen products can be sorted.
AI defect recognition – deep-learning software classifies each particle by colour and shape against a library of product models; Meyer states defects down to 1–2 pixels can be picked up.
High-speed imaging – Meyer quotes 50,000 scans per second and detection of objects as small as 0.0025 mm².
Maglev 3.0 ejectors – non-contact air ejectors rated by Meyer at over 1,200 Hz, designed to reject only what needs rejecting and keep good-product loss down.
Multispectral vision options – Meyer's vision platform covers visible, infrared, UV and X-ray identification; confirm the configuration for your product with Allegiant.
Full RGB lighting with an adjustable background colour to improve contrast between good product and defects.
Sniper System – 3D reconstruction locates the centre of a contaminant so the air blast is aimed precisely.
Remote support – remote monitoring, start-up, settings backup and diagnostics.
Simple operator interface, with operator training provided.

Specifications

Model	Sorter code	Power (kW)	Voltage	Air pressure (MPa)	Air consumption (m³/min)	Dimensions L × W × H	Weight (kg)
120KR5	6SXZ-120KR5	3.6	180–240 V, 50 Hz	0.6–0.8	2.0	3600 × 1760 × 1550	850
240KR5	6SXZ-240KR5	4.9	180–240 V, 50 Hz	0.6–0.8	7	3800 × 2350 × 2100	1150

Why buy from Allegiant

Allegiant supplies, installs and supports Meyer optical sorters across Australia and the Pacific, from plant design through to commissioning and optimisation. Send us details of your product and throughput and we'll recommend the right configuration and provide a quote.
