Meyer - Nut, Rice, Coffee & Bean X-ray Sorter for Glass & Stones – XS Series

Supplier: Allegiant Milling & Processing Solutions

Nut, Rice, Coffee & Bean X-ray Sorter for Glass & Stones – XS Series

1/3

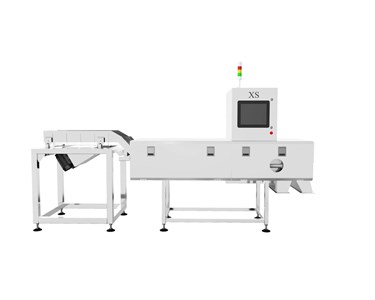

Bulk X-ray sorter for nuts, rice, coffee, beans, pulses and produce that rejects glass, metal, stones and hollow or damaged kernels optical sorters can't see. Supplied, installed and supported in Australia by Allegiant.

Removes glass & stones colour can't see

What it inspects

Nuts – e.g. almonds and other kernels
Grains & seeds – rice, seeds
Coffee
Beans & pulses
Fruits & vegetables – e.g. berries

What it detects

Foreign objects: glass, metal, stones and ceramics
Internal defects: unripe, damaged or hollow nuts, fruit and seeds
Contaminants that look like the product from the outside, identified by internal structure and density

Key features

X-ray bulk sorting – inspects free-flowing product on the line rather than packed goods
Maglev Ejectors (Maglev 3.0) – non-contact ejectors working above 1,200 Hz with millisecond flap action, rejecting defects without interrupting product flow
Enclosed design with integrated safety systems – radiation is controlled within the machine
High-speed imaging – 50,000 scans per second
AI image analysis – deep-learning software trained on shape and colour data classifies defects as small as 1–2 pixels
Sniper System – 3D reconstruction pinpoints the centre of a contaminant so it can be targeted for removal
Remote support – real-time monitoring, remote start-up, backups, status checks and diagnostics
Simple operator interface – intuitive control panel, with operator training provided

Specifications

Model	Power (kW)	Voltage (V)	Air pressure (MPa)	Air consumption (m³/min)	Dimensions L × W × H	Weight (kg)
60XS4 (MY8045-60XS)	2.5	180–240, 50 Hz	0.6–0.8	0.3	2530 × 1100 × 2200	580
80XS4 (MY8060-80XS)	2.5	180–240, 50 Hz	0.6–0.8	0.3	2530 × 1250 × 2400	680

A larger 120XS4 model is also available – contact Allegiant for details.

Why buy from Allegiant

Allegiant supplies, installs and supports Meyer equipment across Australia and the Pacific, from plant design through to commissioning and optimisation. Send us details of your product and throughput and we'll recommend the right configuration and provide a quote.
