Meyer - Nut, Grain, Seed, Pulse & Coffee UV Colour Sorter – CG UV Nuts

Supplier: Allegiant Milling & Processing Solutions

Nut, Grain, Seed, Pulse & Coffee UV Colour Sorter – CG UV Nuts

1/3

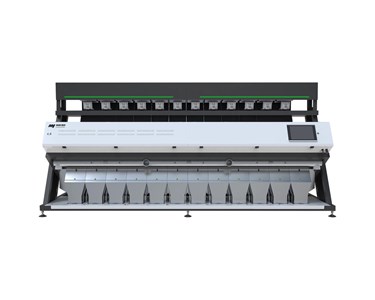

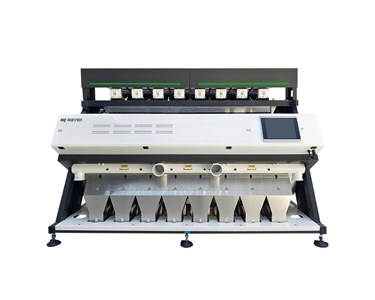

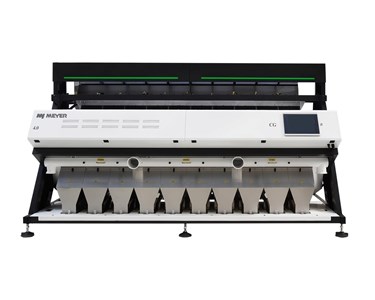

Chute colour sorter with UV capability for nuts, grains, seeds, beans, pulses and coffee that removes mouldy, discoloured, insect-damaged and broken product and foreign objects. Supplied, installed and supported in Australia by Allegiant.

UV + colour sorting for nuts & grains

What it sorts

Nuts

Nuts

Grains, seeds & pulses

Grains
Seeds
Beans and pulses (legumes)

Coffee

Coffee

What it removes

Mouldy and discoloured product
Insect-damaged product
Broken grains
Foreign objects

Key features

Grading as well as cleaning – can also sort by length, size and shape.
Configurable – multiple configuration options to suit different plants, from the CG UV8 up to the CG UV MAX.
AI that adapts – deep-learning recognition of hard-to-detect defects, with sorting parameters adjusted in real time; Meyer states defects down to 1–2 pixels can be detected.
Maglev ejectors – up to 1,200 ejections per second with millisecond response, to limit good-product loss and handle delicate product gently.
High-speed imaging – Meyer quotes 50,000 scans per second, slow-motion capture and detection of objects as small as 0.0025 mm².
Multispectral vision – visible, infrared, UV and X-ray identification options.
Full RGB lighting with an adjustable background colour to improve contrast between good product and defects.
Sniper System – 3D reconstruction locates the centre of a contaminant so the air blast is aimed precisely.
Remote support – remote monitoring, start-up, settings backup and diagnostics.
Simple operator interface, with operator training provided.

Specifications

Model	Sorter code	Power (kW)	Voltage	Air pressure (MPa)	Air consumption (m³/min)	Dimensions L × W × H	Weight (kg)
CG UV8	6SXZ-480CG2 UV8	3.4	180–240 V, 50 Hz	0.6–0.8	6.5	2991 × 1564 × 2020	1750
CG UV10	6SXZ-480CG2 UV10	–	180–240 V, 50 Hz	0.6–0.8	–	–	–
CG UV12	6SXZ-600CG2 UV12	–	180–240 V, 50 Hz	0.6–0.8	–	–	–
CG UV MAX	6SXZ-780CG2 UV13	5.0	180–240 V, 50 Hz	0.6–0.8	10.0	4445 × 1620 × 2020	2800

Why buy from Allegiant

Allegiant supplies, installs and supports Meyer optical sorters across Australia and the Pacific, from plant design through to commissioning and optimisation. Send us details of your product and throughput and we'll recommend the right configuration and provide a quote.
