Haco - Metal Cutting Guillotine Shears | GSX3013 Price Guide: $135,850

Read more...

To contact HACO Australia about Haco Metal Cutting Guillotine Shears | GSX3013 use Get a quote.

Features:

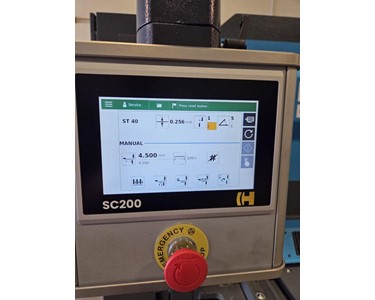

• New operator control. On the GSX models (sheet metal shearing machines), the beam rake angle and the blade gap setting are controlled (standard) by the new SC200T operator control. We adjust the rake angle on the GSX guillotines by pumping more oil into, or releasing oil out of the right cylinder. To set the blade gap, we have 2 hydraulic cylinders which push the ram of the blade gap forward or backwards. The ram is guided between 4 spring loaded bearings.


• Automatically set blade gap settings. With the new SC200 control, the rake angle and blade gap settings are set automatically by entering the material type and thickness of the sheet to be cut. The servo-driven backgauge on ball-screw in combination with the SC200 control, allows the operator to program different target positions for several cuts over one sheet and cut the sheets without any need to touch the operator control.


• Hydraulic controlled hold-downs. The sheet hold-downs on the GSX guillotine models are hydraulic controlled. The hold-downs use a separate hydraulic circuit with separate pump. A pressure activated switch is used for the right pressure setting. The hold-downs on both sides of the shear are installed closer together to cut small plates. The GSX guillotines come standard with a shadow light function, to be able cutting of plate, without the use of a backgauge.


• Light guard system. All Haco guillotines are equipped with European Safety Specifications. To allow much easier and safer access to the rear of the guillotine and to prevent injury while cutting HACO applies an optical guard system.

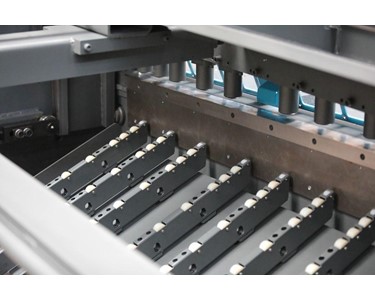

• Sheet metal hold-up system. A specific feature of the GSX range is the complete free rear
  space between the frames, so the machine can be executed with different sheet support systems to improve production output. The hydraulic sheet support system follows the movement of the beam. Principally for thinner sheets, it assures the perfect gauging while entering the sheet into the machine. During the cutting action the sheet remains supported in order to avoid damage and deformation. When the cutting action is finished the plate slides down smoothly. The system can be switched off, e.g. for cutting thicker plates.
• We also offer SBS (Sheet Back To Sender) on smaller cuts the material can be feed back out the front of machine to operator.

Specifications:

Standard Features SC200 control:

• LCD colour screen.
• Material type list
• Automatic electro-hydraulic blade gap setting
• Automatic electro-hydraulic cutting angle setting
• Automatic programmable retraction of the back gauge.
• Cutting length adjustment.
• Backlash compensation.
• Delayed sheet release selector
• Mode selection Inch-Metric.
• (Preset) counter with 0-stop
• Programmable backstop settings
• Programmable

Standard Machine Features:

• All steel welded interlocked Monoblock construction
• GSX guillotines are upper driven by 2 top cylinders
• Two cutting blades each 4 cutting edges.
• Squaring arm with scale, T-slot and tilting stop.
• Tilting sheet hold-downs independent from the shearing pressure.
• Cutting line illumination

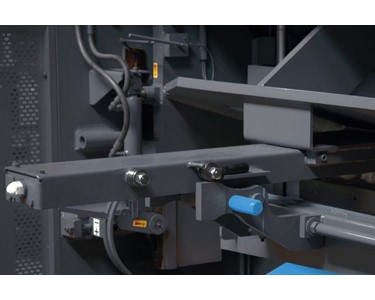

• Motorised, backgauge, on ballscrews, SERVO driven.

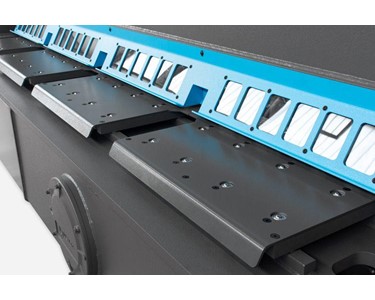

• Hand Safety Guard
• Back safety light guard combined with side safety fences.
• Foot pedal control
• Operation & maintenance manual

Optional Features

• Mechanical swing away backgage
• Hydraulic swing away backgauge
• Thin sheet hold-up system
• Protractor for angle shearing
