Pan Mixer Moisture Sensor on a Rotating Arm – Hydro-Probe Orbiter

Supplier: Allegiant Milling & Processing Solutions

1/6

A moisture sensor on an arm that sits in the material inside rotating pan, planetary and turbo mixers (or on scraper arms), and can also be fitted in bins or on conveyors. Supplied and supported in Australia by Allegiant.

Arm-mounted sensor for pan mixers

Brand: Hydronix

Where it's used

Materials: sand, stone, recycled asphalt pavement (RAP) and other aggregates
Rotating pan mixers: on a replaceable arm in the material flow, head unit above the material
Static pan, planetary and turbo mixers: mounted on the rotating scraper blade arm

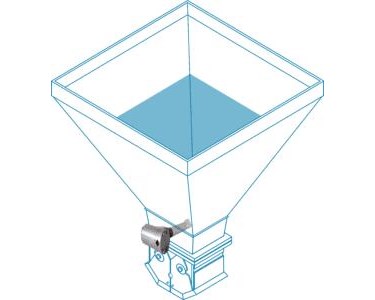

Bins and silos: in the material flow or under the bin gate
Belt conveyors
Listed by Hydronix as an option at pelletiser outlets in grain/bulk solids processing

What it measures

Moisture content of material in the mixer, plus material temperature.

Key features

Arm-mounted design with replaceable protection sleeves, plates and rings
Rotating connector option
Selectable measurement modes
Adjustable signal filtering via Hydro-Com
Internal temperature compensation
Configure and calibrate remotely via Hydro-Com, Hydro-View or Hydro-Hub

Specifications

Specification	Value
Supply voltage	15–30 V DC (several sensors can share one supply)
Measurement rate	25 readings per second
Outputs	2 × analogue, RS485 with Modbus, configurable digital inputs/outputs
Accuracy (once calibrated, as published by Hydronix)	0.2% for aggregates, 0.1% in a mixer, 0.5% for other materials
Maximum cable run	100 m (screened 6-pair, 22 AWG / 0.35 mm² cable recommended, e.g. Belden 8306 or Alpha 6373)

Why buy from Allegiant

Allegiant supplies, installs and supports Hydronix moisture measurement across Australia and the Pacific, alongside complete grain processing and sorting systems. Tell us your material, process and installation point and we'll recommend the right sensor and provide a quote.

Where it's used

Materials: sand, stone, recycled asphalt pavement (RAP) and other aggregates
Rotating pan mixers: on a replaceable arm in the material flow, head unit above the material
Static pan, planetary and turbo mixers: mounted on the rotating scraper blade arm
Bins and silos: in the material flow or under the bin gate
Belt conveyors
Listed by Hydronix as an option at pelletiser outlets in grain/bulk solids processing

What it measures

Moisture content of material in the mixer, plus material temperature.

Key features

Arm-mounted design with replaceable protection sleeves, plates and rings
Rotating connector option
Selectable measurement modes
Adjustable signal filtering via Hydro-Com
Internal temperature compensation
Configure and calibrate remotely via Hydro-Com, Hydro-View or Hydro-Hub

Specifications

Specification	Value
Supply voltage	15–30 V DC (several sensors can share one supply)
Measurement rate	25 readings per second
Outputs	2 × analogue, RS485 with Modbus, configurable digital inputs/outputs
Accuracy (once calibrated, as published by Hydronix)	0.2% for aggregates, 0.1% in a mixer, 0.5% for other materials
Maximum cable run	100 m (screened 6-pair, 22 AWG / 0.35 mm² cable recommended, e.g. Belden 8306 or Alpha 6373)

Why buy from Allegiant
