Anritsu - X-Ray Food Inspection System | Large model [XR75 series]

Supplier: J.L.Lennard

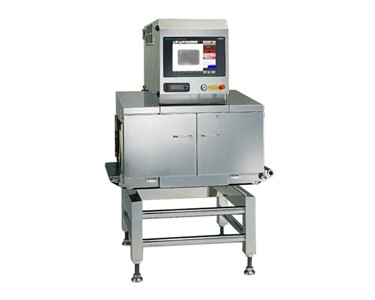

X-Ray Food Inspection System | Large model [XR75 series]

XR75 Large is designed for the inspection of products in large cartons, boxes, cases, trays, and bags. The system provides not only contaminant detection but also count check and missing inspection.

Receive 1-3 days from order

For products in large cartons, cases and bags.
Suitable for the inspection of raw materials in receiving process as well as products in shipment process.

Specifications

Model		KXS7554AWHSE
Detection sensitivity¹		Fe sphere and SUS sphere 0.4 mm dia.
X-ray output		Tube voltage 30 to 80 kV, tube current 0.4 to 10.0 mA, output 350 W
Safety		X-ray leakage maximum 1.0 µ Sv/h or less, prevention of x-ray leakage by safety devices
Display		15-inch color TFT LCD
Operation method		Touch panel (with touch buzzer)
Detection area^{2, 3}		Maximum width 590 mm, maximum height 250 mm (Pass height of 350 mm is available as an option.)
Belt width		620 mm
Preset memory		200
Belt speed / Maximum product weight⁴	Dry environment	10 to 30 m/min maximum 50 kg 31 to 40 m/min maximum 40 kg 20 to 70 m/min maximum 20 kg (optional)
	Wet environment where water or oil is scattered on the conveyor	10 to 30 m/min maximum 40 kg 31 to 35 m/min maximum 30 kg 36 to 40 m/min maximum 20 kg 20 to 60 m/min maximum 20 kg (optional) 61 to 70 m/min maximum 10 kg (optional)
Power requirements		100 Vac to 120 Vac ±10% or 200 Vac to 240 Vac ±10% (However, switch the tap of a transformer), single phase, 50/60 Hz, 1.2 kVA (1.9 kVA with optional air conditioner), rush current 70 A (typ.) (40 ms or less)
Mass⁵		480 kg (525 kg with optional air conditioner)
Environmental conditions^{6, 7}		Temperature: 0°C to 35°C (0°C to 40°C with optional air conditioner), relative humidity: 30% to 85%, non-condensing
Protection class		Conveyor: IP66 Other parts: IP40
Exterior		Stainless steel (SUS304)

1: Actual sensitivity depends on the physical properties of products (contents and shape) and on the environmental conditions.
2: The product size should fall bellow the detection area.
3: The entrance and exit may require covers depending on the length of a product.
4: Sum total of product weight on the conveyor.
5: Mass without option.
6: The air-conditioner option may be required depending on the operating environment.
7: The air conditioner can be used without a filter (standard); however, the filter option is recommended for use in dusty environment. When using the filter option, the temperature range in the operating environment of the x-ray system is limited.

To contact J.L.Lennard about Anritsu X-Ray Food Inspection System | Large model [XR75 series] use Get a quote.

For products in large cartons, cases and bags.
Suitable for the inspection of raw materials in receiving process as well as products in shipment process.

Specifications

Model		KXS7554AWHSE
Detection sensitivity¹		Fe sphere and SUS sphere 0.4 mm dia.
X-ray output		Tube voltage 30 to 80 kV, tube current 0.4 to 10.0 mA, output 350 W
Safety		X-ray leakage maximum 1.0 µ Sv/h or less, prevention of x-ray leakage by safety devices
Display		15-inch color TFT LCD
Operation method		Touch panel (with touch buzzer)
Detection area^{2, 3}		Maximum width 590 mm, maximum height 250 mm (Pass height of 350 mm is available as an option.)
Belt width		620 mm
Preset memory		200
Belt speed / Maximum product weight⁴	Dry environment	10 to 30 m/min maximum 50 kg 31 to 40 m/min maximum 40 kg 20 to 70 m/min maximum 20 kg (optional)
	Wet environment where water or oil is scattered on the conveyor	10 to 30 m/min maximum 40 kg 31 to 35 m/min maximum 30 kg 36 to 40 m/min maximum 20 kg 20 to 60 m/min maximum 20 kg (optional) 61 to 70 m/min maximum 10 kg (optional)
Power requirements		100 Vac to 120 Vac ±10% or 200 Vac to 240 Vac ±10% (However, switch the tap of a transformer), single phase, 50/60 Hz, 1.2 kVA (1.9 kVA with optional air conditioner), rush current 70 A (typ.) (40 ms or less)
Mass⁵		480 kg (525 kg with optional air conditioner)
Environmental conditions^{6, 7}		Temperature: 0°C to 35°C (0°C to 40°C with optional air conditioner), relative humidity: 30% to 85%, non-condensing
Protection class		Conveyor: IP66 Other parts: IP40
Exterior		Stainless steel (SUS304)
