Anritsu - X-Ray Food Inspection System | XR75 DualX

Supplier: J.L.Lennard

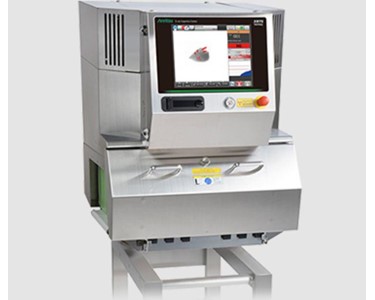

X-Ray Food Inspection System | XR75 DualX

XR75 DualX model features revolutionary technology for the reliable detection of thin, low-density foreign objects such as small bones or stones.

Receive 1-3 days from order

Analyzing two different x-ray energy signals, it clearly distinguishes contaminants from products. Performs accurate inspection of low density bones in metal and overlapping products.

Specifications

Model	KXE7534AWHZE
X-ray output	Tube voltage 30 to 80 kV, tube current 0.4 to 10.0 mA, output 12 to 350 W
Safety	X-ray leakage maximum 1.0 µSv/h or less, prevention of x-ray leakage by safety devices
Display	15-inch color TFT LCD
Operation method	Touch panel (with touch buzzer)
Detection area^{1, 2}	Maximum width 390 mm, maximum height 220 mm
Preset memory	200
Belt speed³ / Maximum product weight⁴	10 to 60 m/min maximum 5 kg
Belt speed³ / Maximum product weight⁴	10 to 40 m/min maximum 10 kg (optional)
Power requirements⁵	200 Vac to 240 Vac, single phase, 50/60 Hz, 2100 VA or less
Mass⁶	350 kg
Environmental conditions⁷	Temperature: 0°C to 30°C, relative humidity: 30% to 85%, non-condensing
Protection class	Conveyor: IP66 Other parts: IP65
Exterior	Stainless steel (SUS304)

1: The product size should fall below the detection area.
2: The entrance and exit may require covers depending on the length of a product.
3: Variable depending on Product No.
4: Sum total of product weight on the conveyor.
5: Allowable power fluctuation range is ±10%.
6: Mass without option.
7: The temperature between 0°C and 35°C when an optional cooling system is installed.

To contact J.L.Lennard about Anritsu X-Ray Food Inspection System | XR75 DualX use Get a quote.

Analyzing two different x-ray energy signals, it clearly distinguishes contaminants from products. Performs accurate inspection of low density bones in metal and overlapping products.

Specifications

Model	KXE7534AWHZE
X-ray output	Tube voltage 30 to 80 kV, tube current 0.4 to 10.0 mA, output 12 to 350 W
Safety	X-ray leakage maximum 1.0 µSv/h or less, prevention of x-ray leakage by safety devices
Display	15-inch color TFT LCD
Operation method	Touch panel (with touch buzzer)
Detection area^{1, 2}	Maximum width 390 mm, maximum height 220 mm
Preset memory	200
Belt speed³ / Maximum product weight⁴	10 to 60 m/min maximum 5 kg
Belt speed³ / Maximum product weight⁴	10 to 40 m/min maximum 10 kg (optional)
Power requirements⁵	200 Vac to 240 Vac, single phase, 50/60 Hz, 2100 VA or less
Mass⁶	350 kg
Environmental conditions⁷	Temperature: 0°C to 30°C, relative humidity: 30% to 85%, non-condensing
Protection class	Conveyor: IP66 Other parts: IP65
Exterior	Stainless steel (SUS304)

Read less...

To contact J.L.Lennard about Anritsu X-Ray Food Inspection System | XR75 DualX use Get a quote.
