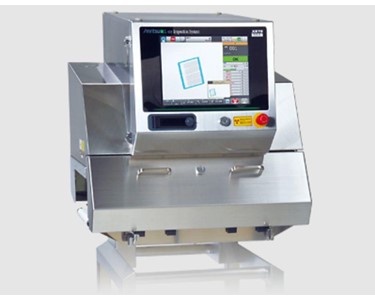

X-Ray Food Inspection System | XR75 Standard

The XR75 makes x-ray inspection more affordable to purchase, own and operate.

Receive 1-3 days from order

Specifications

Model	KXS7522AWCLE
X-ray output	Tube voltage 30 to 80 kV, tube current 0.4 to 3.3 mA, output 12 to 100 W
Safety	X-ray leakage maximum 1.0 µSv/h or less, prevention of x-ray leakage by safety devices
Display	15-inch color TFT LCD
Operation method	Touch panel (with touch buzzer)
Product size^{1, 2}	Maximum width 240 mm, maximum height 120 mm
Belt width	270 mm
Preset memory	200
Belt speed³ /Maximum product weight⁴	10 to 60 m/min maximum 5 kg
	60 to 90 m/min maximum 2 kg
	0 to 40 m/min maximum 10 kg (optional)
Power requirements⁵	100 to 240 AC, single phase, 50/60Hz?700 VA or less (standard)
Mass⁶	225 kg
Environmental conditions⁷	Temperature: 0°C to 35°C, Relative humidity: 30% to 85%, non-condensing
Protection class	Conveyor IP66, other parts IP40
Exterior	Stainless steel (SUS304)

To contact J.L.Lennard about Anritsu X-Ray Food Inspection System | XR75 Standard use Get a quote.

Specifications

Model	KXS7522AWCLE
X-ray output	Tube voltage 30 to 80 kV, tube current 0.4 to 3.3 mA, output 12 to 100 W
Safety	X-ray leakage maximum 1.0 µSv/h or less, prevention of x-ray leakage by safety devices
Display	15-inch color TFT LCD
Operation method	Touch panel (with touch buzzer)
Product size^{1, 2}	Maximum width 240 mm, maximum height 120 mm
Belt width	270 mm
Preset memory	200
Belt speed³ /Maximum product weight⁴	10 to 60 m/min maximum 5 kg
	60 to 90 m/min maximum 2 kg
	0 to 40 m/min maximum 10 kg (optional)
Power requirements⁵	100 to 240 AC, single phase, 50/60Hz?700 VA or less (standard)
Mass⁶	225 kg
Environmental conditions⁷	Temperature: 0°C to 35°C, Relative humidity: 30% to 85%, non-condensing
Protection class	Conveyor IP66, other parts IP40
Exterior	Stainless steel (SUS304)

Read less...

To contact J.L.Lennard about Anritsu X-Ray Food Inspection System | XR75 Standard use Get a quote.
