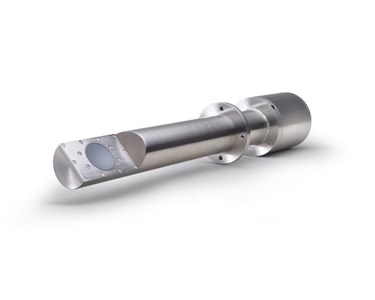

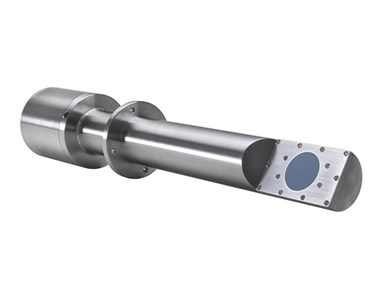

Brix Sensor for Sugar Vacuum Pans & Pipelines – Hydro-Probe BX

Supplier: Allegiant Milling & Processing Solutions

1/2

Measures Brix (sugar concentration), dissolved solids and moisture in liquids inside pressure vessels, vacuum pans and pipelines – useful for sugar and other liquid processing. Supplied and supported in Australia by Allegiant.

Measures Brix in liquids

Brand: Hydronix

Where it's used

Materials: liquids and dissolved solids, powdered products, paints, pharmaceutical powders
Vacuum pans / calandria and pressure vessels: mounted in the base or side
Pipelines
Processes: storage, mixing, conveying, milling/grinding, vacuum pan, water/chemical addition

What it measures

Brix, dissolved solids and moisture, plus material temperature.

Key features

Works from vacuum to 6 bar
Material temperatures up to 120°C
Selectable measurement modes
Internal temperature compensation
Cleaning connection kit and mounting boss/gasket kit available
Configure and calibrate remotely via Hydro-Com, Hydro-View or Hydro-Hub

Specifications

Specification	Value
Material temperature	Up to 120°C
Pressure	Vacuum to 6 bar
Supply voltage	15–30 V DC (several sensors can share one supply)
Measurement rate	25 readings per second
Outputs	2 × analogue, RS485 with Modbus, configurable digital inputs/outputs
Maximum cable run	100 m (screened 6-pair, 22 AWG / 0.35 mm² cable recommended, e.g. Belden 8306 or Alpha 6373)

Why buy from Allegiant

Allegiant supplies, installs and supports Hydronix moisture measurement across Australia and the Pacific, alongside complete grain processing and sorting systems. Tell us your material, process and installation point and we'll recommend the right sensor and provide a quote.

Where it's used

Materials: liquids and dissolved solids, powdered products, paints, pharmaceutical powders
Vacuum pans / calandria and pressure vessels: mounted in the base or side
Pipelines
Processes: storage, mixing, conveying, milling/grinding, vacuum pan, water/chemical addition

What it measures

Brix, dissolved solids and moisture, plus material temperature.

Key features

Works from vacuum to 6 bar
Material temperatures up to 120°C
Selectable measurement modes
Internal temperature compensation
Cleaning connection kit and mounting boss/gasket kit available
Configure and calibrate remotely via Hydro-Com, Hydro-View or Hydro-Hub

Specifications

Specification	Value
Material temperature	Up to 120°C
Pressure	Vacuum to 6 bar
Supply voltage	15–30 V DC (several sensors can share one supply)
Measurement rate	25 readings per second
Outputs	2 × analogue, RS485 with Modbus, configurable digital inputs/outputs
Maximum cable run	100 m (screened 6-pair, 22 AWG / 0.35 mm² cable recommended, e.g. Belden 8306 or Alpha 6373)

Why buy from Allegiant

Read less...

To contact Allegiant Milling & Processing Solutions about Brix Sensor for Sugar Vacuum Pans & Pipelines – Hydro-Probe BX use Get a quote.
