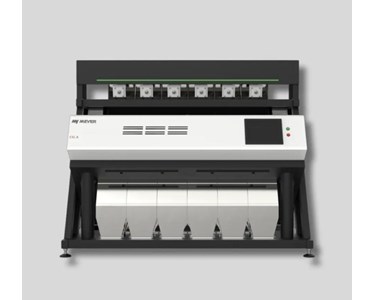

The Meyer CG.A Series AI Color Sorter is a high-performance optical sorting machine designed for precise, efficient separation of grains, beans, seeds, and nuts.

Receive 1-3 days from order

The Meyer CG.A Series AI Color Sorter is a high-performance optical sorting machine designed for precise, efficient separation of grains, beans, seeds, and nuts. Equipped with advanced AI capabilities, ultra-HD optical sensors, and modular engineering, the CG.A series effectively rejects impurities such as moldy, frozen, stained, split, peeled, discolored, or wormhole-damaged items, as well as foreign materials.

Key Features & Core Technology

AI Deep Learning System (Optional): Features high-resolution imaging and dual-core processing for 4x higher computing power, enabling precise recognition and accurate rejection of moldy, wormhole, discolored, and foreign impurities.
Ultra-HD Camera System (Optional): Utilizes low-distortion lenses paired with industrial-grade four-color CCD sensors capable of detecting identification areas as small as 0.0025 mm.
Intelligent Upper Vacuum System (Optional): Efficiently filters light drift, dust, and fine debris at the feed end to ensure clean feeding.
NIR Configuration (Optional): Provides Near-Infrared technology for advanced foreign material detection beyond color variance.
Modular & Reliable Construction: Built with standardized, highly modular structural engineering to lower maintenance costs, maintain continuous processing stability, and ensure long-term operational performance.

Supported Sorting Applications

Beans & Pulses: Broad Bean, Mung Bean, Coffee Bean, White Bean, Pea, Chickpea, Soya Bean, Red Bean.
Seeds & Kernels: Sunflower Seed Kernel, Pumpkin Seed.
Defect Rejections: Moldy, frozened, stained, split, peeled, purple/discolored grains, wormholes, dust, and foreign materials.

Technical Specifications

Model	Ejectors	Power (kW)	Voltage	Air Pressure (MPa)	Air Consumption (m3/min)	Weight (kg)	Dimensions (L×W×H) (mm)
6SXZ-120CG2	120	1.3	180–240V 50Hz	0.6–0.8	=< 2.5	750	1299 x 1564 x 2020
6SXZ-240CG2	240	2.0	180–240V 50Hz	0.6–0.8	=< 4.0	1120	1891 x 1564 x 2020
6SXZ-360CG2	360	2.7	180–240V 50Hz	0.6–0.8	=< 5.5	1400	2533 x 1564 x 2020
6SXZ-480CG2	480	3.4	180–240V 50Hz	0.6–0.8	=< 6.5	1750	2991 x 1564 x 2020
6SXZ-600CG2	600	4.0	180–240V 50Hz	0.6–0.8	=< 8.0	2090	3583 x 1564 x 2020
6SXZ-780CG	780	5.0	180–240V 50Hz	0.6–0.8	=< 10.0	2800	4445 x 1620 x 2020
