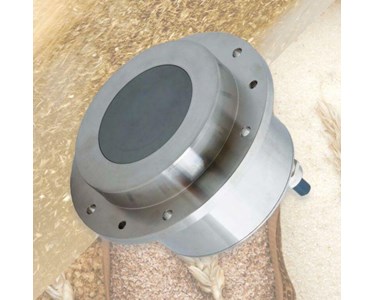

Hydronix Hydro-Mix XT-EX Digital Microwave Moisture Sensor

Supplier: Allegiant Milling & Processing Solutions

Receive 1-3 days from order

The Hydronix Hydro-Mix XT-EX (HMXT-EX01) is a heavy-duty, flush-mount digital microwave moisture sensor engineered for hazardous dust environments. Fully certified for Zone 20/21 and Class II, Division 1/2 locations, it delivers precise, real-time moisture measurements for bulk solids and liquids in high-risk dust applications.

As a self-contained unit, the sensor executes all signal processing, temperature compensation, and data averaging directly on-board. It integrates seamlessly into industrial plant control systems via direct linear outputs or network communications.

Key Features & Benefits

Hazardous Dust Safety Certifications: Certified for installation in ATEX/IECEx Zone 20/21 (Zone 20 internal to process, Zone 21 external) and Class II, Division 1/2 environments.
High-Speed Measurement: Digital technology performs 25 readings per second for fast response times and precise digital signal processing.
Flush-Mount Design: Mounts flush with internal walls of mixers, hoppers, ducting, dryer outlets, and conveyor systems using a dedicated fixing plate and seal assembly.
Self-Contained Intelligence: Internal electronics handle digital signal processing, temperature compensation, configurable alarms, and signal averaging without requiring external processing units.
Calibration Stability: Provides consistent operational performance across material batches without needing frequent recalibration.
Remote Management: Compatible with Hydronix Hydro-Com software for simple configuration, calibration, diagnostics, and firmware updates.

Supported Applications & Materials

Designed for continuous flow monitoring across hoppers, ducting, conveyors, mixer vessels, and dryer outlets in explosive dust environments

Agricultural & Food Processing: Grain, rice, seeds, nuts, animal feed, and pulses.
Industrial Bulk Solids & Liquids: Granules, bulk powders, and process liquids.

Technical Specifications

Parameter	Specification
Model Code	HMXT-EX01
Hazardous Ratings	ATEX: Ex II 1/2D IECEx: Zn 20/21 AEx ta/tb IIIC T180 115oC Da/Db ETL: Class II, Div 1/2, Groups E, F, G T115oC
Body Construction	316 Stainless Steel
Faceplate Material	Ceramic
Internal Seals	EPDM FDA-Approved O-Rings
Moisture Range	0–100% (material dependent)
Penetration Depth	Approx. 75–100 mm (material dependent)
Refresh Rate	25 readings per second
Operating Temperature	-20°C to 60°C
Moisture Sensing Temp	0°C to 60°C
Pressure Rating	1 Bar Vacuum to 5 Bar Pressure
Ingress Protection	IP68 Cable Gland
Power Requirements	+15V to +30V DC, 4W Max
Native Connectivity	2 Analogue Outputs (4–20mA, 0–20mA, 0–10V DC) 2 Configurable Digital I/O Modbus & Opto-Isolated RS485 (2-wire)
Network Interfaces	Via Hydro-Hub/Hydro-View: EtherNet/IP, PROFINET, PROFIBUS, Web API Other: RS232, Ethernet (TCP/IP), USB
Integrated Cable	4 m, 6 twisted pairs, 22AWG, IP68 gland (max recommended length: 100 m)
Dimensions	Face Flange Diameter: 148 mm \| Body Diameter: 108 mm \| Length: 107 mm
