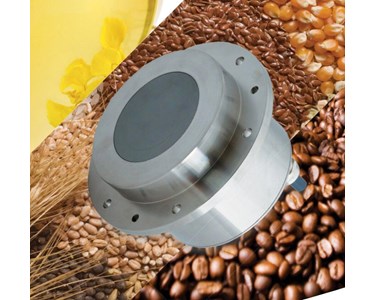

Hydronix Hydro-Mix XT-FS Digital Microwave Moisture Sensor

Supplier: Allegiant Milling & Processing Solutions

The Hydronix Hydro-Mix XT-FS (HMXT-FS01) is a flush-mount, digital microwave moisture sensor specifically engineered for food-safe applications.

Receive 1-3 days from order

The Hydronix Hydro-Mix XT-FS (HMXT-FS01) is a flush-mount, digital microwave moisture sensor specifically engineered for food-safe applications. Fully compliant with European food safety standard EN 1935/2004, it provides precise, real-time moisture measurements for bulk materials in flowing processing environments.

As a compact, self-contained unit, the sensor executes all signal processing, temperature compensation, and data averaging on-board

. It integrates smoothly into existing process control systems via linear outputs or remote digital interfaces

Key Features & Benefits

Food-Safe Compliance: Fully compliant with EN 1935/2004 and fitted with FDA-approved EPDM O-rings for safe operation in food processing.
High-Speed Precision: High-speed digital technology takes 25 readings per second, providing rapid response rates with advanced digital signal processing.
Flush Mount Installation: Mounts flush with internal walls of ducting, hoppers, mixers, and conveyor systems using its specialized fixing plate assembly.
Consistent & Calibration-Free: Provides repeatable performance across operations without needing frequent recalibration for the same material.
Fully Self-Contained: Built-in intelligence handles signal averaging, diagnostics, temperature compensation, and alarm functionality.
Remote Management: Easily configure, calibrate, diagnose, and upgrade firmware remotely using Hydronix Hydro-Com software.

Supported Applications & Materials

Ideal for continuously flowing materials in ducting, hoppers, mixers, and conveying lines across the food processing sector, including:

Grains & Seeds
Cereals & Pulses
Nuts & Kernels
Oils & Liquid/Dusty Processing Environments

Technical Specifications

Parameter	Specification
Model Code	HMXT-FS01
Material Body	316 Stainless Steel
Faceplate	Ceramic (EN 1935/2004 Compliant)
Seals	EN 1935/2004 and EPDM FDA-Approved O-Rings
Moisture Range	0–100% (material dependent)
Penetration Depth	Approx. 75–100 mm (material dependent)
Refresh Rate	25 readings per second
Operating Temperature	-20°C to 60°C
Moisture Detection Temp	0°C to 60°C
Pressure Rating	1 Bar Vacuum to 5 Bar Pressure
Ingress Protection	IP69 Cable Gland
Power Requirements	+15V to +30V DC, 4W Max
Analogue Outputs	2 configurable 4–20mA / 0–20mA current loops (convertible to 0–10V DC)
Digital IO	2 configurable signals for averaging and alarm functions
Digital Communications	Modbus, Opto-Isolated RS485 (2-wire), RS232, optional Ethernet/USB converters
Integrated Cable	4 m length, 6 twisted pairs, 22AWG, IP69 gland (up to 100 m run limit)
Sensor Dimensions	Face Flange Diameter: 148 mm \| Body Diameter: 108 mm \| Total Length: 107 mm
