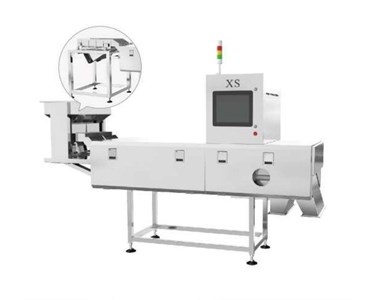

Meyer AI+ Digital Intelligent X-ray Inspection Machine Series Get latest price

• High Precision Imaging: Utilizes an international advanced beryllium window X-ray source and up to 0.1 mm TDI detector to identify dense and similar-density foreign materials down to 0.05 mm (such as fine fish bones and internal nut disease spots).
• 4M1E Refinement Detection System: Comprehensive AI target recognition covering 5 key food processing risk elements:


  • Man (Personnel): Pins, card issuance, earrings, buttons, gloves, cigarette butts.
  • Machine (Equipment): Screws, screw caps, springs, gaskets, glass, seals.
  • Material (Raw Materials): Animal bones, fish bones, fish hooks.
  • Method (Process Defects): Oil leakage, content/seal leakage, package folding, empty packages.
  • Environments (Logistics/Storage): Metal, stone, glass, bricks, plastic, insects.


• AI Deep Learning Technology: Features distributed edge computing units, a large sample library, self-adjusting parameters, and high-level interference immunity.
• High Reliability & Modular Design: Standardized structure with a general part rate exceeding 70% and 45% fewer redundant control modules compared to standard sorters.
• Digitalization & IoT Integration (1+N): Real-time smart imaging calibration, dynamic sleep light sources, remote mobile phone status monitoring, online O&M diagnosis, and seamless integration with multi-head weighers, packaging units, and metal detectors.
• Safety & Regulatory Compliance: Operates at a maximum X-ray dose under 0.001 Gy (well below the 0.1 Gy food safety regulation).

Machine Models & Configurations

1. Food Material / Bulk Inspection Series

• Standard Definition Version: Optimized for general foreign impurity and nut deflation detection.
• High Definition Version: Equipped with a 0.4 mm TDI detector for spotted nut detection.
• Ultra HD Version: Features 100% higher resolution than the HD version to detect internal moldiness and wormholes in nuts and seeds.

2. Packaged Food Inspection Series (XM / X Models)

• Small & Medium Packaged Food (MY8045-XM): Three-in-one solution for oil leakage, weight classification, and foreign impurity detection. Rejection methods include air blowing, push plate, and flip plate.
• Large Packaged Food (MY12060-XM): Equipped with a 480W high-power emitter capable of penetrating heavy bags/boxes up to 25 kg. Features automatic anti-deviation conveyor belt design.

3. Canned & Bottled Food Inspection Series (XI Model)

• MY12015-XL: Features unique Four-View Angle Technology to eliminate detection blind spots at the bottom and sides of bottles, glass jars, and metal cans. Reaches output efficiency gains up to 60%.

4. Ultra HD Fish Bone & Sensitive Material Series

• MY8045-XM (Fish Bone Version): Utilizes an ultra-high resolution 0.1 mm TDI detector to identify delicate fish bones and fine wire down to 0.05 mm. Paired with a 4K HD display screen for clear visual inspection.

Detailed Technical Specifications
