Receive 1-3 days from order

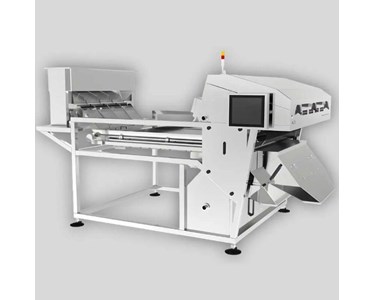

The Meyer K Series AI Color Sorter is a specialized optical sorting solution engineered for sorting nuts and tiny impurities. Designed for precision, stability, and reliability, the K Series features high-speed AI deep learning, ultra-HD optics, and custom dust extraction to handle complex nut defect varieties.

Key Features & Core Technology

AI Deep Learning System (Optional): Equipped with high-definition imaging offering 4x higher resolution and dual-core processing for 4x higher power, ensuring clear recognition and precise rejection of moldy, wormhole, discolored, and fine defect items.
Ultra-HD Camera System (Optional): Features low-distortion lenses paired with industrial-grade four-color CCD sensors, capable of detecting defect areas as small as 0.0025 mm.
Super Dust Control System (Optional): Removes excessive dust and light impurities during sorting to ensure optimal sorting performance and continuous throughput.
Modular & Standardized Design: Designed for automated, intelligent production with long-term operational stability, reduced maintenance costs, and high product reliability.

Supported Sorting Applications

Nut Varieties & Defect Types Detected:
- Pecans / Specialty Nuts: Wichita, Choctaw, Ukalinga, discolored, germination, onion rings, mould, skin marks, late stinkbug.
- Seeds & Shelled Goods: Moldy, wormhole, broken, motely shell, dried.
- Peanuts & Kernels: Moldy, frozened, stain, split, peeled, purple, cracked, spot, broken, single, rotten.

Technical Specifications

Model	Ejectors	Power (kW)	Voltage	Air Pressure (MPa)	Air Consumption (m3/min)	Weight (kg)	Dimensions (L×W×H) (mm)
6SXZ-60K4	60	3.1	180–240V 50Hz	0.6–0.8	=< 1.5	580	3530 x 1200 x 2000
6SXZ-120K4	120	3.6	180–240V 50Hz	0.6–0.8	=< 2.0	700	3530 x 1500 x 2000
6SXZ-240K4	240	4.7	180–240V 50Hz	0.6–0.8	=< 3.0	990	3530 x 2100 x 2000
6SXZ-360K4	360	6.6	180–240V 50Hz	0.6–0.8	=< 4.5	1300	3530 x 2700 x 2000
