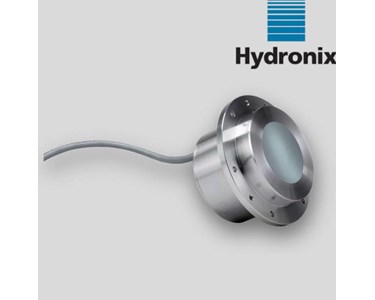

Hydronix Hydro-Mix XT Digital Microwave Moisture Sensor HMXT01

Supplier: Allegiant Milling & Processing Solutions

Receive 1-3 days from order

The Hydronix Hydro-Mix XT (HMXT01) is a compact, heavy-duty digital microwave sensor engineered to deliver real-time, high-precision moisture and temperature measurement in flowing bulk solids and liquids. Installed flush with the internal wall of ducting, mixers, or conveyors, it provides continuous 0–100% linear moisture readings for process control in agricultural, feed, food, and industrial processing environments.

Key Features & Advantages

Digital Microwave & DSP Technology: Takes 25 readings per second with high-speed digital signal processing, delivering rapid response times and consistent accuracy without drift.
Flush-Mount Design: Mounts inline with vessel or duct walls, ensuring seamless material flow across its wear-resistant ceramic faceplate.
Pressurized & Dust-Proof Sealing: Engineered for high-pressure or vacuum environments (1 bar vacuum to 5 bar pressure) with FDA-compliant EPDM internal and mounting seals.
Fully Temperature Compensated: Built-in temperature compensation ensures accurate readings during process temperature fluctuations.
Flexible Measurement Modes: Offers configurable measurement modes to optimize signal response based on specific material properties.
Remote Software Configuration: Simple configuration, diagnostic monitoring, and calibration via Hydronix Hydro-Com software or optional Hydro-View / Hydro-Hub interfaces.

Typical Applications & Compatible Materials

Applications: Batching, weighing, steam conditioning, drying, pelletizing, extrusion, and continuous conveying.
Target Materials: Grain, animal feed, rice, pulses, nuts, biomass, organic materials, granules, and processing liquids.
Installation Locations: Mixers (single/twin shaft), ducting lines, drop chutes, and belt conveyor systems (using the optional Hydro-Skid accessory).

Technical Specifications

Parameter	Specification
Model / Part Number	HMXT01
Measurement Range	Moisture: 0–100% (material dependent)
Penetration Depth	Approx. 75–100 mm (material dependent)
Measurement Refresh Rate	25 readings per second
Operating Temperature	Continuous process: 0°C to 60°C
Environmental Pressure	1 Bar Vacuum to 5 Bar Pressure
Ingress Protection	IP68 (Cable Gland)
Body Construction	316 Stainless Steel body, Ceramic faceplate
Seals	EPDM O-Rings (FDA Approved)
Power Supply	+15V to +30V DC, 4W
Analogue Outputs	2 x configurable loop sources (4–20mA, 0–20mA, or convertible to 0–10V DC) for moisture/temperature
Digital Inputs/Output	2 x configurable signals for averaging or alarm conditions
Serial Communication	Opto-isolated RS485 (2-wire); compatible with RS232, USB, and Ethernet converters
Integrated Cable	4 m, 6 twisted pairs (22 AWG / 0.35 mm^2), screened braid + aluminum foil

Key Features & Advantages

Digital Microwave & DSP Technology: Takes 25 readings per second with high-speed digital signal processing, delivering rapid response times and consistent accuracy without drift.
Flush-Mount Design: Mounts inline with vessel or duct walls, ensuring seamless material flow across its wear-resistant ceramic faceplate.
Pressurized & Dust-Proof Sealing: Engineered for high-pressure or vacuum environments (1 bar vacuum to 5 bar pressure) with FDA-compliant EPDM internal and mounting seals.
Fully Temperature Compensated: Built-in temperature compensation ensures accurate readings during process temperature fluctuations.
Flexible Measurement Modes: Offers configurable measurement modes to optimize signal response based on specific material properties.
Remote Software Configuration: Simple configuration, diagnostic monitoring, and calibration via Hydronix Hydro-Com software or optional Hydro-View / Hydro-Hub interfaces.

Typical Applications & Compatible Materials

Applications: Batching, weighing, steam conditioning, drying, pelletizing, extrusion, and continuous conveying.
Target Materials: Grain, animal feed, rice, pulses, nuts, biomass, organic materials, granules, and processing liquids.
Installation Locations: Mixers (single/twin shaft), ducting lines, drop chutes, and belt conveyor systems (using the optional Hydro-Skid accessory).

Technical Specifications

Parameter	Specification
Model / Part Number	HMXT01
Measurement Range	Moisture: 0–100% (material dependent)
Penetration Depth	Approx. 75–100 mm (material dependent)
Measurement Refresh Rate	25 readings per second
Operating Temperature	Continuous process: 0°C to 60°C
Environmental Pressure	1 Bar Vacuum to 5 Bar Pressure
Ingress Protection	IP68 (Cable Gland)
Body Construction	316 Stainless Steel body, Ceramic faceplate
Seals	EPDM O-Rings (FDA Approved)
Power Supply	+15V to +30V DC, 4W
Analogue Outputs	2 x configurable loop sources (4–20mA, 0–20mA, or convertible to 0–10V DC) for moisture/temperature
Digital Inputs/Output	2 x configurable signals for averaging or alarm conditions
Serial Communication	Opto-isolated RS485 (2-wire); compatible with RS232, USB, and Ethernet converters
Integrated Cable	4 m, 6 twisted pairs (22 AWG / 0.35 mm^2), screened braid + aluminum foil
