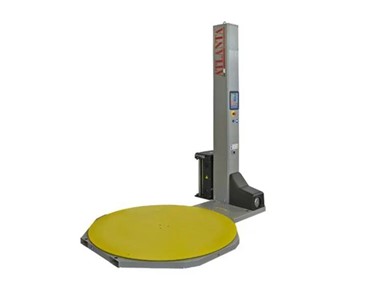

The Mytho is the top of the range low maintenance Italian Made powered prestretch Pallet wrapping Machine, built by Atlanta Stretch SPa, and distributed by Melbpack. The Mytho version XF-5003 is equipped with a powerful PRS(Powered prestretch system) by can can be purchased with a friction brake, electromagnetic brake or twin motor variable Power pre stretch system. The Mytho has 2 Modes of operation, semi auto and manual and multiple adjustable parameters including turntable speed, carriage speed, top wraps, bottom wraps and photocell delay and many others.

automatically detects pallet height, all users need to do is attach the film and press start. The Mytho XF-5003 does the rest.

The Mytho can be provided with a wide range of options, including transpallet turntable, lowprofile turntable, extra wrapping height, pit frame, scales and many other options.

Feature Summery.

• Automatic 1 Button Push start
• Available in 4 different carriage options, see below.
• Automatic pallet Height detection
• 6 Fully adjustable Auto programs, Plus manual mode of operation.
• Over 30 adjustable parameters, see below for complete list.
• 2000kg Capacity
• 2500mm Wrapping height
• 1650mm diameter turntable for Australian and export pallets.
• Made in Italy by Atlanta Stretch.
• Built with German Schneider electric inverters
• Save a massive amount per pallet by using the Mytho PRS Powered prestretch head unit

PARAMETERS ADJUSTABLE FROM CONTROL PANEL:

• Bottom pallet wrapping rounds from 1 to 10
• Top pallet wrapping rounds from 1 to 10
• Rotation speed adjustable from 5 to 12 rpm
• Spool carriage speed upwards and downwards independently adjustable
• Spool carriage speed upwards speed from 1,3 up to 5,4 m/min
• Spool carriage speed downwards speed from 1,3 up to 5,4 m/min
• All function parameters settable on display
• Photocell sensing delay
• All function parameters settable on display
• Weight of film used (Option on PRS – PS)
• Key block

BASIC CYCLES SELECTABLE FROM CONTROL PANEL:

• Double cycle (Upwards / Downwards)
• Single cycle (Only upwards or only downwards)
• Top sheet cycle
• Wrapping cycle with altimeter (Photocell Off)
• Wrapping cycle with start and stop height pre-programmed
• Wrapping cycle with reinforcement and settable number of wraps
• Wrapping cycle with step rising of spool carriage
• Manual wrapping programme
• Push-buttons for manual functions

TECHNICAL FEATURES:

• Turntable Ø 1650 mm
• Max. load weight: 2000 Kg
• Wrapping height (Pallet included) 2500 mm
• Base-frame turntable height 75mm
• Load height sensing photocell and altimeter
• Acceleration / Deceleration ramps controlled by frequency changer
• Spool carriage upwards/downwards speeds controlled by frequency changer
• Safety carriage foot protection
• Beeper at cycle start and phase stopping at cycle end
• Emergency mushroom & reset push-button according to latest CE Norms
• Safe enclosed mast design with chain drive.
