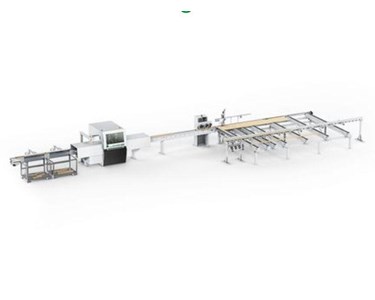

The WEINIG SOLID CUT TF 5000 is a heavy-duty cross-cut saw for large cross sections, with VarioSpeed infeed, three driven overhead feed rollers and optimisation for maximum material yield.

Maximum material yield

Specification	Value
Cutting of cross-sections	up to 310 x 12 mm or 190 x 120 mm
Saw blade diameter	500 mm
Min. fixed length behind saw blade	150 mm
Cutting tolerance	± 0.8 mm to 1000 mm length
OptiCom Pro operator interface	15' and 18'

Handles almost any quality of wood, including lower grade or twisted wood, with consistent high production.
Measures the entire workpiece before the first cut. Drive-independent measuring wheels rule out faulty measurements caused by slippage or belt elongation; intelligent optimisation software maximises material yield.
An additional measuring wheel in front of the saw blade ensures maximum cutting accuracy.
Robust saw body with three driven overhead feed rollers that follow the wood contour for maximum grip, precise positioning, high acceleration and continuously high performance in multi-shift operation.
Standard VarioSpeed infeed belt intelligently reduces spacing between consecutive workpieces, maintaining continuous supply and minimising idle time to increase productivity and profitability.
Pneumatic saw stroke.
Standard integrated, intelligently controlled waste gate separates waste from OK parts immediately after cutting. Its multi-stage system directly discharges longer waste parts without additional performance-impacting stages.
Continuous, secure guidance from marker table to sorting; a continuous fence inside the saw ensures clean, exact alignment and right-angled cuts.

OptiCom Pro industrial TFT pressure-sensitive touchscreen offers simple, intuitive operation without special PC knowledge.
Operable with gloves and protected against splash water and dust.
Toolboxes display additional information and provide direct access to production, machine and service functions. They can be hidden to maximise the work area and improve readability from a distance.

Modular construction supports extensions, scanner connections, SOLID CUT PFtackers for automatic stacking of preferred lengths, and multiple cross-cut lines.
The series’ most flexible machine for retrofitting, with application-specific equipment packages and feed rollers with different surface coatings.
Processes rough and planed surfaces in the same shift; gummed rollers are easy to clean.
Optional production-optimisation software and various mechanisation solutions.
WEINIG scanner systems automatically detect workpiece properties during production and guide automatic cutting using the resulting data.
Individually adaptable workpiece marking simplifies part allocation.
SOLID CUT STACK forms neat stacks of preferred lengths, optionally adding stack slats between layers.

Specification	Value
Cutting of cross-sections	up to 310 x 12 mm or 190 x 120 mm
Saw blade diameter	500 mm
Min. fixed length behind saw blade	150 mm
Cutting tolerance	± 0.8 mm to 1000 mm length
OptiCom Pro operator interface	15' and 18'

Handles almost any quality of wood, including lower grade or twisted wood, with consistent high production.
Measures the entire workpiece before the first cut. Drive-independent measuring wheels rule out faulty measurements caused by slippage or belt elongation; intelligent optimisation software maximises material yield.
An additional measuring wheel in front of the saw blade ensures maximum cutting accuracy.
Robust saw body with three driven overhead feed rollers that follow the wood contour for maximum grip, precise positioning, high acceleration and continuously high performance in multi-shift operation.
Standard VarioSpeed infeed belt intelligently reduces spacing between consecutive workpieces, maintaining continuous supply and minimising idle time to increase productivity and profitability.
Pneumatic saw stroke.
Standard integrated, intelligently controlled waste gate separates waste from OK parts immediately after cutting. Its multi-stage system directly discharges longer waste parts without additional performance-impacting stages.
Continuous, secure guidance from marker table to sorting; a continuous fence inside the saw ensures clean, exact alignment and right-angled cuts.

OptiCom Pro industrial TFT pressure-sensitive touchscreen offers simple, intuitive operation without special PC knowledge.
Operable with gloves and protected against splash water and dust.
Toolboxes display additional information and provide direct access to production, machine and service functions. They can be hidden to maximise the work area and improve readability from a distance.

Modular construction supports extensions, scanner connections, SOLID CUT PFtackers for automatic stacking of preferred lengths, and multiple cross-cut lines.
The series’ most flexible machine for retrofitting, with application-specific equipment packages and feed rollers with different surface coatings.
Processes rough and planed surfaces in the same shift; gummed rollers are easy to clean.
Optional production-optimisation software and various mechanisation solutions.
WEINIG scanner systems automatically detect workpiece properties during production and guide automatic cutting using the resulting data.
Individually adaptable workpiece marking simplifies part allocation.
SOLID CUT STACK forms neat stacks of preferred lengths, optionally adding stack slats between layers.
