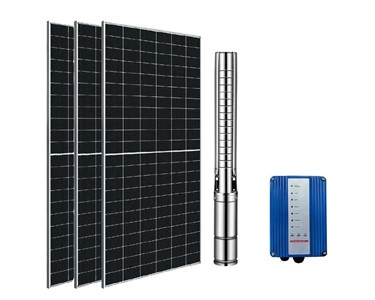

Submersible Solar Water Pump Kit - 1.25"

Submersible Solar Water Pump Kit - 1.25" Price Guide: $6,200

Supplier: Able Sales Australia

Submersible Solar Water Pump Kit - 1.25"

This high-performance solar-powered submersible water pump kit is designed for deep bore water extraction, offering superior efficiency and ease of installation for off-grid and remote applications.

Key Features

Stainless steel submersible screw pump built for harsh bore conditions
Flow capacity up to 4,800 L/hour with a maximum head of 125 metres
1100 W power input, running on 72 V DC
Integrated MPPT controller, solar PV panels, water level sensors, and complete mounting kit
Comes with 75 metres of pump power cabling and MC4 weather-resistant connectors
Three 560W solar PV panels included, designed for parallel connection to suit the pump’s requirements
Mounting frame accommodates all panels securely with a 3-metre embedment pole
User-friendly installation process supported by comprehensive instructions
High and low water sensors prevent pump from running dry or overfilling the tank

Specifications

Power Input	1100 W
Voltage	72 V DC
Max Flow Rate	4,800 L/hour
Max Head	125 m
Inlet/Outlet	1.25 inch
Impellor Material	Rubber & Stainless Steel
Included Solar Panels	3 x 560W
Power Cabling	75 m 3G4mm²
Solar Connections	Solar PV cabling and MC4 connectors
Mounting Frame	Accommodates 3 solar panels, 3 m pole for embedment

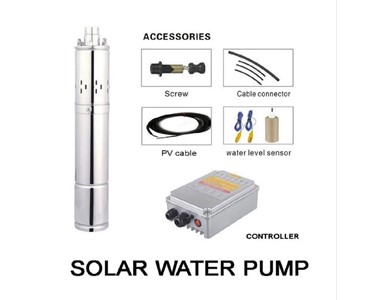

Included in the Kit

316 stainless steel submersible screw pump
MPPT controller with water level (float) controller
Three 560W solar PV panels
Mounting frame and 3-metre embedment pole
75 metres of 3G4mm² power cabling
PV cabling with MC4 connectors
High and low water sensors
Comprehensive instruction guide

Applications

Ideal for off-grid solar water pumping in agricultural, rural, bore, livestock, or remote water supply applications as a sustainable and efficient alternative to conventional windmill and diesel pumping systems.
