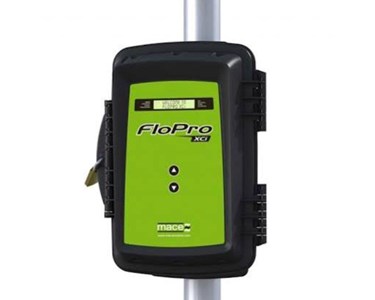

FloPro XCi Area/Velocity Wastewater, Stormwater & Industrial Flow Monitor

Supplier: Thermo Fisher Scientific Australia Pty Ltd

1/2

The FloPro XCi is an advanced system designed to monitor wastewater, stormwater, and industrial flows with high precision in various pipe and channel conditions.

Advanced Doppler ultrasonic technology delivers precise, maintenance-free flow monitoring in complex hydraulic conditions.

Key Features

Doppler ultrasonic area/velocity sensor with MASP technology
Monitors full and partially full pipes as well as open channels
Easy installation via the MACE ZX SnapStrap
Reliable operation in regular and irregular cross-sections
Rugged, weatherproof, IP66-rated enclosure with LCD display
Expandable, multi-card system for up to five user-selectable applications
Remote configuration and diagnostics via MACE WebComm
Compatible with a wide range of water quantity and quality sensors
No moving parts; minimal flow obstruction; virtually maintenance-free

Applications

Stormwater monitoring
Sewer and lift station monitoring
Road culvert and partially full pipe flow measurement
General municipal, industrial and mining water monitoring

System Specifications

Weight	5 kg
Dimensions	365 mm (H) x 260 mm (W) x 170 mm (D)
Enclosure Rating	IP66, UV-stabilised polycarbonate
Operating Temperature	-15°C to +50°C (with battery), -20°C to +65°C (external power)
Display	16 character x 2 line backlit LCD
Memory	2 Mb flash (stores 600,000 readings)
Power	12V 7.2Ah internal battery with solar/mains charging
Software	FloCom+ (for configuration and data downloading)

Measurement Details

Depth: Ceramic pressure transducer, 4 m range, 0.2% accuracy, 1 mm resolution
Velocity: Submerged Doppler, ±0.025 to ±8.0 m/s, ±1% accuracy, 1 mm resolution at 1 m/s
Pipe Compatibility: 0.1 to 2.54 m diameter (with relevant sensors)
Channel Width: Up to 3 m (sensors function on wider channels with appropriate gauging)

Sensors & Expansion Cards

Doppler Card (ultrasonic sensor support)
I/O Card (7 sensor inputs, 4 outputs for 4-20mA, voltage, digital signals)
Pulse I/O Card (single pulsing flow sensor + pulse output)
FloSI Card (SDI-12/ModBus output for SCADA integration)
SDI-12 Master Card (supports up to 10 SDI-12 sensors)
WebComm Card (GSM/3G remote access and data upload)

Sensor Installation Options

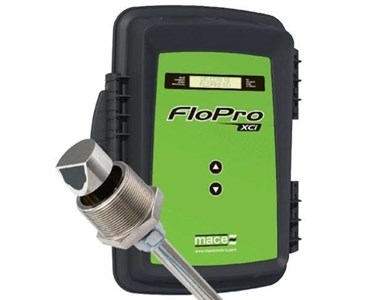

Doppler Insert Velocity Sensor: For full and partially full pipes (0.1 to 2.54 m diameter, 2" BSP/NPT fitting, up to 1034 kPa pressure)
Doppler Area/Velocity Sensor: SnapStrap mount, for partially full pipes or open channels (0.15 to 2.54 m diameter, max 3 m channel width, 125 x 50 x 20 mm)
Doppler Velocity Sensor: SnapStrap mount for full pipes or open channels (0.15 to 2.54 m diameter, 125 x 50 x 17 mm)

Additional Information

Minimal installation time—ready to monitor within hours out-of-the-box
Supports integration with SCADA/telemetry for remote data access and system control
Automatic data upload to internal/remote servers, with SMS/Email alerts available
Compatible with In-Situ sensors (Aqua TROLL, Level TROLL, water samplers, etc.)
Factory backup: 24 months parts and labour guarantee

To contact Thermo Fisher Scientific Australia Pty Ltd about FloPro XCi Area/Velocity Wastewater, Stormwater & Industrial Flow Monitor use Get a quote.
