Inoxpa Flexible Impeller Pump

All Products > Transport Equipment > Flexible Bollards

Inoxpa - Flexible Impeller Pump

Supplier: Inoxpa
Inoxpa - Flexible Impeller Pump
Flexible Impeller Pump
Inoxpa - Flexible Impeller Pump
Flexible Impeller Pump
1/2
Inoxpa - Flexible Impeller Pump

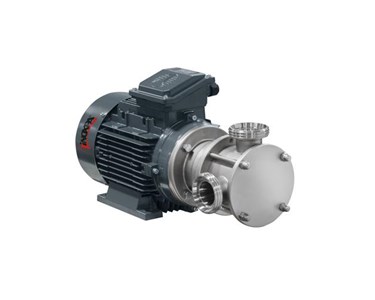

The INOXPA Flexible Impeller Pump features 1.4404 (AISI 316L) steel parts in contact with the product and an internal Bright polish Ra<0,8 μm finish.

Video for Inoxpa Flexible Impeller Pump
Description
Documents
Bright polish Ra<0,8 µm

Materials

Specification
Value
Steel parts in contact with the product
1.4404 (AISI 316L)
Other steel parts
1.4301 (AISI 304)
Lantern and bearing support
CF8

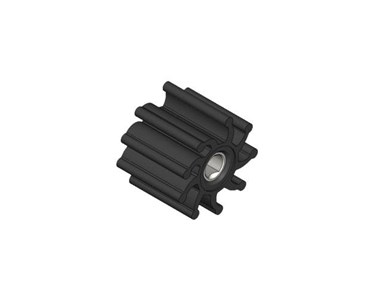

Impeller
CR (Neoprene)
Gaskets in contact with the product
FPM (standard) - EPDM

Mechanical seal

Specification
Value
Rotary part
Carbon (C)
Stationary part
Silicon carbide (SiC)
Gasket
FPM

Surface finish

Specification
Value
Internal
Bright polish Ra<0,8 µm
External
Matt

Connections

  • DIN 11851
  • CLAMP
  • SMS
  • Other connections available on request.

Options

  • SiC/SiC or SiC/C mechanical seals.
  • Motors with other protections.
  • 6-pole motors.
  • Electric panel with 10 m cable.
  • Stainless steel trolley.

Read more...

To contact Inoxpa about Inoxpa Flexible Impeller Pump use Get a quote.

Materials

Specification
Value
Steel parts in contact with the product
1.4404 (AISI 316L)
Other steel parts
1.4301 (AISI 304)
Lantern and bearing support
CF8
Impeller
CR (Neoprene)
Gaskets in contact with the product
FPM (standard) - EPDM

Mechanical seal

Specification
Value
Rotary part
Carbon (C)
Stationary part
Silicon carbide (SiC)
Gasket
FPM

Surface finish

Specification
Value
Internal
Bright polish Ra<0,8 µm
External
Matt

Connections

  • DIN 11851
  • CLAMP
  • SMS
  • Other connections available on request.

Options

  • SiC/SiC or SiC/C mechanical seals.
  • Motors with other protections.
  • 6-pole motors.
  • Electric panel with 10 m cable.
  • Stainless steel trolley.

Read less...

To contact Inoxpa about Inoxpa Flexible Impeller Pump use Get a quote.
