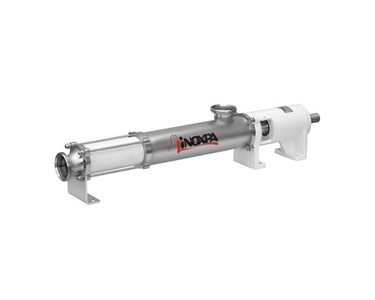

Inoxpa KIBER KS Progressive Cavity Pump

Inoxpa - KIBER KS Progressive Cavity Pump

Supplier: Inoxpa

Inoxpa - KIBER KS Progressive Cavity Pump

KIBER KS Progressive Cavity Pump

Inoxpa - KIBER KS Progressive Cavity Pump

The INOXPA KIBER KS is a self-priming, reversible sanitary progressive cavity pump for low- and high-viscosity products, including products containing soft particles.

self-priming and reversible

Applications

Transfers low- and high-viscosity products, including products containing soft particles.
Recommended for edible oils, wine, concentrates and beverages in general.
Can also transfer viscous food products.

Design and features

Sanitary progressive cavity pump.
Bare shaft construction with bearing support.
Self-priming and reversible.
Open transmission (hygienic design).
Eccentric outlet.

Materials and specifications

Specification	Value
Parts in contact with the product	Stainless steel AISI 316L (1.4404)
Other steel parts	Stainless steel AISI 304 (1.4301)
Bearing support	GG-22
Stator	black NBR (according to FDA and EC 1935/2004)
Gaskets in contact with the product	FPM (according to FDA and EC 1935/2004)
Single internal mechanical seal	EN 12756 l1k (according to FDA and EC 1935/2004)
Rotary part	Silicon carbide (SiC)
Stationary part	Carbon (C)
Gaskets	FPM
Internal	Bright polish, Ra = 0,8 µm
External	Matt
Connections	DIN 11851; CLAMP; SMS

Options

Double pressurised mechanical seal.
Single flushed mechanical seal (Quench).
Mechanical seal: SiC/SiC.
Gland packing.
Stators: white EPDM and black NBR.
Gaskets: EPDM.
Other types of connections.
Heavy-duty transmission.
Fixed transmission.
Pump casing with heating jacket.
Stainless steel trolley.
Electrical control panel.
Bypass pressure relief valve.
Cleaning port (CIP).
ATEX certification.

To contact Inoxpa about Inoxpa KIBER KS Progressive Cavity Pump use Get a quote.

Applications

Transfers low- and high-viscosity products, including products containing soft particles.
Recommended for edible oils, wine, concentrates and beverages in general.
Can also transfer viscous food products.

Design and features

Sanitary progressive cavity pump.
Bare shaft construction with bearing support.
Self-priming and reversible.
Open transmission (hygienic design).
Eccentric outlet.

Materials and specifications

Specification	Value
Parts in contact with the product	Stainless steel AISI 316L (1.4404)
Other steel parts	Stainless steel AISI 304 (1.4301)
Bearing support	GG-22
Stator	black NBR (according to FDA and EC 1935/2004)
Gaskets in contact with the product	FPM (according to FDA and EC 1935/2004)
Single internal mechanical seal	EN 12756 l1k (according to FDA and EC 1935/2004)
Rotary part	Silicon carbide (SiC)
Stationary part	Carbon (C)
Gaskets	FPM
Internal	Bright polish, Ra = 0,8 µm
External	Matt
Connections	DIN 11851; CLAMP; SMS

Options

Double pressurised mechanical seal.
Single flushed mechanical seal (Quench).
Mechanical seal: SiC/SiC.
Gland packing.
Stators: white EPDM and black NBR.
Gaskets: EPDM.
Other types of connections.
Heavy-duty transmission.
Fixed transmission.
Pump casing with heating jacket.
Stainless steel trolley.
Electrical control panel.
Bypass pressure relief valve.
Cleaning port (CIP).
ATEX certification.

To contact Inoxpa about Inoxpa KIBER KS Progressive Cavity Pump use Get a quote.

Bomba Helicoidal KIBER KS FT.KIBER_KS.1_ES.pdf Español - 22/03/2017 - 365 KB(0.37MB)

Progressive Cavity Pump KIBER KS FT.KIBER_KS.1_EN.pdf English - 22/03/2017 - 420 KB(0.38MB)

Pompe Hélicoïdale KIBER KS FT.KIBER_KS.1_FR.pdf Français - 22/03/2017 - 365 KB(0.37MB)

Pompa Monovite Elicoidale Kiber KS FT.KIBER_KS.1_IT.pdf Italiano - 22/03/2017 - 418 KB(0.43MB)

Bomba Helicoidal Kiber KS FT.KIBER_KS.1_PT.pdf Português - 22/03/2017 - 624 KB(0.64MB)
