Inoxpa - PROLAC HCP Hygienic Centrifugal Pump

Supplier: Inoxpa

PROLAC HCP Hygienic Centrifugal Pump

1/2

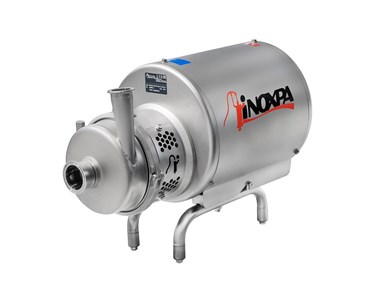

The INOXPA PROLAC HCP is a compact, close-coupled hygienic centrifugal pump with a balanced mechanical seal and CIP/SIP cleaning without disassembly.

CIP/SIP systems without disassembly

Compact, highly efficient, close-coupled centrifugal pump with hygienic design.
Suitable for applications requiring high hygiene, gentle product handling and resistance to chemical agents; particularly suitable as a main process pump in dairy, beverage, pharmaceutical and cosmetic industries.

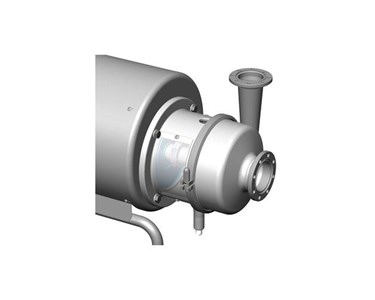

Construction includes a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft connected to the motor shaft by mechanical compression.
IEC-compliant motor with stainless steel shroud and height-adjustable, hygienically designed legs.
Designed according to EHEDG recommendations; easily cleaned by CIP/SIP systems without disassembly.
Authorised to carry the 3-A symbol, subject to the configuration options below.

Internal single mechanical seal with balanced, hygienic design.
Alternative seal materials available when required.
Optional double mechanical seal uses two identical seals, allowing single-to-double seal upgrades and simplifying spare-parts management.

Specification	Value
Parts in contact with the product	Stainless steel AISI 316L (1.4404)
Other steel parts	Stainless steel AISI 304 (1.4301)
Gaskets in contact with the product	EPDM

Pump casing with drain port.
Pump casing with heating chamber.
Different types of connections.
Mechanical seal: SiC/SiC or TuC/SiC.
Double mechanical seal.
Gaskets: FPM or FFKM.
Motor with other voltages, frequencies, mechanical protections and efficiencies.
Trolley and/or control panel.
ATEX certification.
