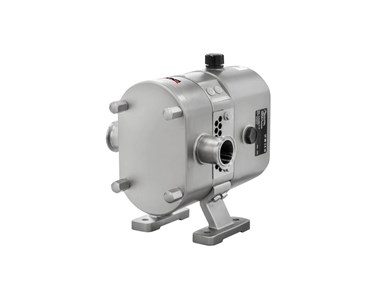

ULTILOBE Hygienic Rotary Lobe Pump

The INOXPA ULTILOBE is a hygienic positive displacement rotary lobe pump with specially designed lobes that pump products containing delicate solids without damage.

Hygienic positive displacement rotary lobe pump for installations in the dairy, food, beverage, cosmetics, pharmaceutical and fine chemical industries.
Handles all kinds of fluids and meets filtering and bottling needs.
Specially designed lobes allow products containing delicate solids to be pumped without being damaged.
Bare shaft pump with a pump casing and cover made from investment casting stainless steel and tri-lobe rotors.
Single mechanical seal with an internal, balanced, hygienic design; can be fully disassembled from the front.

Specification	Value
Parts in contact with the product	1.4404 (AISI 316L)
Bearing bracket	1.4307 (AISI 304L)
Gaskets in contact with the product	EPDM

Specification	Value
Type	Internal, front disassembly
Rotating part	Carbon (C) or Silicon carbide (SiC)
Stationary part	Silicon carbide (SiC)
Gaskets	EPDM

SiC/SiC mechanical seal.
Cooled mechanical seal (quench) and double mechanical seal, in addition to the single mechanical seal.
FPM gaskets.
Front or external pressure bypass.
Front heating chamber.
Bi-wing rotors.
Vertical ported option.
Clamp and SMS connections.

Hygienic positive displacement rotary lobe pump for installations in the dairy, food, beverage, cosmetics, pharmaceutical and fine chemical industries.
Handles all kinds of fluids and meets filtering and bottling needs.
Specially designed lobes allow products containing delicate solids to be pumped without being damaged.
Bare shaft pump with a pump casing and cover made from investment casting stainless steel and tri-lobe rotors.
Single mechanical seal with an internal, balanced, hygienic design; can be fully disassembled from the front.

Specification	Value
Parts in contact with the product	1.4404 (AISI 316L)
Bearing bracket	1.4307 (AISI 304L)
Gaskets in contact with the product	EPDM

Specification	Value
Type	Internal, front disassembly
Rotating part	Carbon (C) or Silicon carbide (SiC)
Stationary part	Silicon carbide (SiC)
Gaskets	EPDM

SiC/SiC mechanical seal.
Cooled mechanical seal (quench) and double mechanical seal, in addition to the single mechanical seal.
FPM gaskets.
Front or external pressure bypass.
Front heating chamber.
Bi-wing rotors.
Vertical ported option.
Clamp and SMS connections.
