Inoxpa MCR Counter-rotating Agitator

Inoxpa - MCR Counter-rotating Agitator

Supplier: Inoxpa

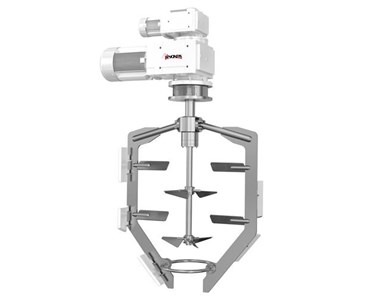

MCR Counter-rotating Agitator

The MCR counter-rotating agitator mixes and homogenises medium- and high-viscosity products. Its hygienic design is suitable for pharmaceutical, cosmetic and food products.

Hygienic design

Hygienic design suitable for pharmaceutical, cosmetic and food products.
For complex agitation processes and fluids with extreme behaviours.
Mixing and homogenisation of medium- and high-viscosity products, including products whose viscosity changes throughout the process.
Rotation speed can be modified at different stages using a variable frequency drive.
Very suitable for heat exchange processes; the scraper anchor helps homogenise temperature during heat transfer.

Two coaxial shafts connect to two geared motors rotating in opposite directions.
The central shaft rotates at higher speeds, with propellers optimised for dispersion and mixing during low-viscosity phases.
The outer shaft connects to an anchor with scrapers that homogenise the product and remove it from tank walls, preventing overheating and allowing faster, more homogeneous heat transfer.
At low product viscosity, the anchor also acts as a deflector for the central propellers.
Configurable across a wide range of powers and turning speeds for application versatility.

Hygienic design according to EHEDG guidelines.
All internal components optimised for CIP and SIP processes.
Easy maintenance and replacement of wear parts, including the mechanical seal and bearing.
Independent high-efficiency bevel gear motors for the anchor and central axis.
Mixing elements adapted to equipment geometry and process parameters.
Modular design, fully configurable with different surface finishes, sealing systems, elastomeric materials, anchor types and lower anchor support systems.
ATEX certification available as an option.

Specification	Value
Components in contact with product	1.4404 (AISI 316L)
Other steel components	1.4404 (AISI 316L)
Mechanical seal	SiC/C
Mechanical seal elastomers	EPDM / FPM
Lip seal	PTFE
