Product Description

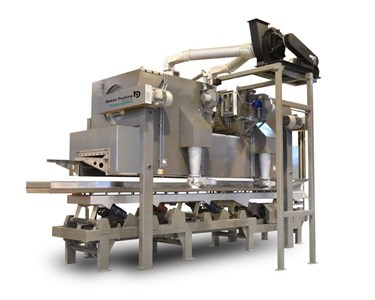

The Thermoglide2™ Toaster by Baker Perkins is a compact, energy-efficient industrial toaster designed for breakfast cereals and similar lightweight food products. Its fluidised-bed technology gently lifts and tumbles products to deliver even, consistent toasting while minimising product damage. The system also supports oil-free puffing of snack pellets.

With independently controlled temperature and airflow zones, integrated dust extraction, energy-efficient hot-air recirculation, and automated PLC/HMI controls, the Thermoglide2™ helps improve product consistency, reduce energy consumption, and simplify cleaning and maintenance.

The system is suitable for food-processing applications involving products such as cornflakes, expanded cereals, and crisped rice. A stainless steel cooling conveyor can cool processed products before coating or packaging.

Product Specifications

Available Models and Capacity

Specification	Details
Brand	Baker Perkins
Product Name	Thermoglide2™ Toaster
Product Type	Industrial cereal toaster / food-processing equipment
Primary Application	Toasting breakfast cereals and lightweight food products
Additional Application	Oil-free puffing of snack pellets
Processing Technology	Fluidised-bed toasting
Temperature Control	Two independently controlled zones
Airflow Control	Two independently controlled zones
Product Conveying	Heavy-duty vibratory conveyor
Dust Extraction	Integrated high-efficiency cyclone system
Air Recirculation	Energy-efficient heated-air recirculation
Humidity Control	Electrically actuated exhaust damper
Control System	PLC/HMI with touchscreen interface
Automation Features	Recipe management, alarm handling, automated start and stop
Plant Integration	Can integrate with plant-wide SCADA systems
Cooling Conveyor	5 m long, variable-speed mesh conveyor
Maintenance Features	External burners, lift-off plenum covers and slide-out tube trays
Safety Features	Explosion relief panel and fire-suppression system
Processor Body Material	Mild steel
Blowing Tubes and Trays	Mild steel
Covers	Painted mild steel or stainless steel
End Access Covers	Stainless steel
Insulation	High-density mineral wool
Vibratory Conveyor Body	Stainless steel
Cooling Conveyor Material	Stainless steel

The brochure lists multiple heating chamber configurations and corresponding nominal outputs for rice and cornflakes.

Heating Chamber Width (mm)	Heating Chamber Length (mm)	Overall Height (mm)	Overall Width (mm)	Overall Length (mm)	Rice Output (kg/hr)	Cornflakes Output (kg/hr)
600	6,000	3,458	1,768	8,415	1,430	715
1,000	6,000	3,648	2,124	8,415	2,250	1,125
1,300	6,000	3,697	2,480	8,415	3,000	1,500
1,300	7,600	3,898	2,480	9,945	3,750	1,875
1,600	6,000	3,917	2,836	8,415	3,750	1,875
1,600	7,600	4,108	2,836	9,945	4,700	2,350
2,000	7,600	4,398	3,240	9,945	5,900	2,950

Note: Capacities and dimensions are transcribed from the brochure’s model range table. Confirm the required configuration and output with the manufacturer before purchase.

Key Features and Benefits

Consistent toasting: Independent temperature and airflow controls help toast the product surface evenly.
Gentle product handling: Fluidised-bed processing minimises product damage.
Improved productivity: Integrated cyclones remove dust and fines without filter elements, reducing cleaning and maintenance requirements.
Energy efficiency: Heated-air recirculation and variable-speed fans help reduce energy consumption.
Automated operation: PLC/HMI touchscreen controls support process visualisation, alarms, recipe management, and automated start/stop.
Simplified maintenance: External burners and accessible heating components make cleaning and servicing easier.
Product cooling: The stainless steel cooling conveyor cools product before coating or packaging.
Industrial safety: Includes an explosion relief panel and fire-suppression system.

Typical Applications

Breakfast cereal processing
Cornflake toasting
Crisped rice processing
Expanded cereal processing
Oil-free puffing of snack pellets
