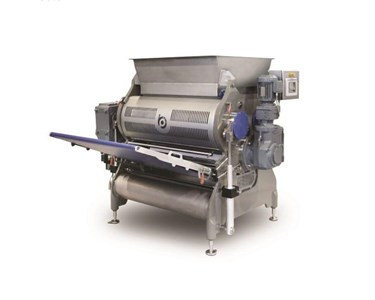

Industrial Dough Sheeter | TruClean™ Three Roll Sheeter

Supplier: Hillen Brand

Baker Perkins TruClean™ Sheet Forming and Cutting Lines

Receive 1-3 days from order

Baker Perkins’ TruClean™ Sheet Forming and Cutting Lines are high-capacity industrial systems designed for manufacturing sheeted and laminated biscuits, crackers, and baked snacks. Built to meet the GMA’s 10 Principles of Sanitary Equipment Design, these lines integrate low-deflection gage rolls, direct drive motors, and automated cascade controls to ensure continuous weight precision while drastically reducing labor, scrap waste, and maintenance downtime.

Line Configurations & Equipment Specifications

Component / Parameter	Details & Technical Specifications
Manufacturer	Baker Perkins (A Brand of Coperion)
Product Category	Sheet Forming & Rotary Cutting Lines for Industrial Bakeries
Standard Line Widths	1,016 mm, 1,220 mm, and 1,525 mm
Three Roll Sheeter	Formulates a homogeneous dough sheet from bulk or metered feeds. Includes a partitioned hopper that folds returned scrap dough beneath fresh dough to maintain a flawless surface finish.
Combination Laminator	Equipped with a miter turn following the sheeter to route dough either into the laminator or through a bypass conveyor directly to the gage rolls. Supports dry ingredient layering between dough sheets.
Gage Rolls	Available in Standard (300 mm diameter) and Heavy-Duty (400 mm diameter for tough doughs). Material choices include solid high-strength carbon steel with stainless steel cladding (25% less deflection than cast iron) or tubular chilled cast iron.
Rotary Cutter	Utilizes separate removable embossing and cutting rolls operating against dual-hardness rubber anvil rolls. Automatically lifts and recycles the scrap dough web back to the sheeter or laminator.
Drives & Controls	Direct-drive AC variable speed motors; self-regulating maintenance-free web drives; localized touchscreen HMIs with automated line cascading.
Hygienic Construction	Full TruClean™ standard compliance; tool-free scraper and roll removal; continuous sanitary welds; sloped drainage surfaces; stand-off mounts; and hygienic feet with no exposed threads.

Key Commercial & Operational Advantages

Uncompromised Weight Precision: Solid carbon steel gage rolls with stainless cladding provide 25% less deflection than traditional chilled cast iron rolls, securing exact sheet thickness across the entire line width.
Automated Scrap Integration: Scrapped dough from the cutting process is returned and fed cleanly to the underside of the main dough sheet, eliminating ingredient waste without compromising product appearance.
Superior Sanitary Design: Engineered to eliminate niches and debris traps, featuring sloped surfaces for complete liquid runoff, continuous welds, and tool-free removal of scrapers and catch trays for quick washdowns.
Low Maintenance Requirements: Outboard-mounted components, grease-migration-resistant sealed bearings, chainless direct drives, and in-situ gage roll repair keep maintenance costs and downtime exceptionally low.
Operational Adaptability: Conveniently switch between direct-sheeted snacks and laminated products (for lighter, crisper textures) using the combination laminator’s pneumatic bypass function.

Target Applications & Product Capability

Product Range: Hard sweet biscuits, laminated biscuits, crackers, and sheeted/baked snacks.
Integrated Process: Sheeting / Laminating --> Gaging --> Cutting --> Baking.
